Name: FPG 9 Contacts Cable Elbow Connector Natural Color Bend Relief Excellent Sealed
Brand: Shenzhen Raymo Electronics Technology Limited
SKU: FPG-0K-309-ClAD52Z
Price: 8.99 USD
Availability: InStock

FPG 9 Contacts Cable Elbow Connector Natural Color Bend Relief Excellent Sealed

اطلاعات پایه

محل منبع:	شنژن ، چین
نام تجاری:	RAYMO
گواهی:	REACH, ISO:9001-2015, CE ,RoHS2.0, SGS
Model Number:	FPG-0K-309-ClAD52Z

مقدار حداقل تعداد سفارش:	1 قطعه/قطعه
قیمت:	negotiable
Packaging Details:	Plastic Bag & Carton
زمان تحویل:	5-7 روز کاری
شرایط پرداخت:	Western Union ، L/C ، D/A ، D/P ، T/T
Supply Ability:	5000 Pieces / Week

اکنون تماس بگیرید

سری:

کانکتور دایره ای ضد آب

Shell size:

0K(1K,2K,3K are available)

Contact no.:

2, 3, 4, 5, 6, 7, 9

Insulator:

PPS, PEEK

Endurance:

5000 times push pull

Application:

Audio-video

برجسته کردن:

outdoor electrical connector,waterproof dc connector

waterproof dc connector

Lemo K Series Fpg 9 Contacts Elbow Circular Waterproof Connectors, Natural Color, FPG-0K-309-ClAD52z

Description

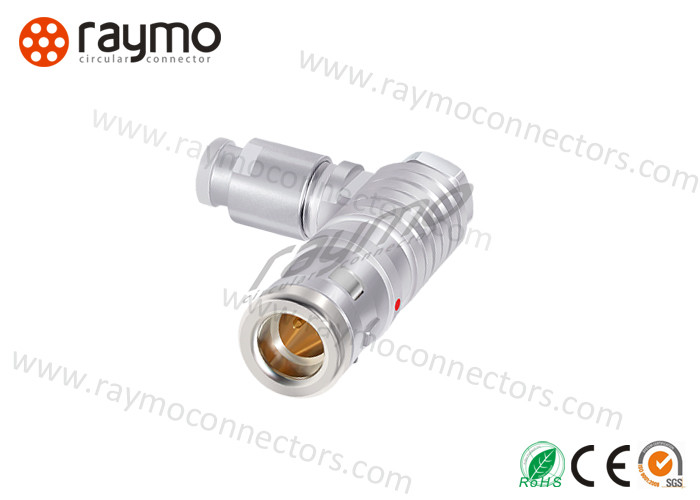

FPG.0K.309.CLAD52Z elbow cable plug with key (G) and cable collet, 0K series, multipoles 9 contacts, outer shell innatural chrome-plated brass, PPS insulator, male solder contacts, collet for 4.2-5.2mm diameter cable, with a black colour bend relief
Cable assemble with overmolding is an option
make with cable by overmoudling, like HMDI, DB9, D-SUB, RS232
FPG can intermateable with FGG.00 LEMO connector but cheaper

Features

can be 100% compatible with original lemo connector
can plated with white or black chrome
Push pull locking metal connector K-series connector, cable to cable connector, free socket, inline connector
can be with different degree , such us 30, 45, 60, 90, 135
360 angle screening for full EMC shielding

Shell size and contacts for option

Shell siz	Contacts no. ( Both with Solder & PCB type )
Shell siz	Contacts no. ( Both with Solder & PCB type )
RM-0K	2	3	4	5	6	7	9
RM-1K	2	3	4	5	6	7	8	10	12	14	16
RM-2K	2	3	4	5	6	7	8	10	12	14	16	19
RM-3K	3	4	6	8/(6+2)	9(8+1)	10	12	14(13+1)	14	16	18	21	26	30	32
RM-4K	7	10	24

Application

Medical LIKE Diagnostic devices
Test & measurement LIKE Sensors
Transport LIKE Maritime
Defense & Security LIKE Target acquisition
Broadcast LIKE Studios and outside broadcasting
Energy LIKE Remote camera control
Extreme LIKE Nuclear

Company information

As manufacturer located in Shenzhen, focusing on manufacturing connectors and cable assemblies serive more than 150 countries since 2010.
ShenZhen Raymo Electronic is a professional push pull connectors manufacturer integrating connectors research and development, Prction and sales!
Offer this range of push pull circular connectors specifically designed for applications that require secure and precise connector signal integrity.

RM-F Series FPG Shell type dimension and pictures

FPG 9 Contacts Cable Elbow Connector Natural Color Bend Relief Excellent Sealed 1

Why you need buy Raymo's compatible connector?

100% compatible lemo connector
Help you save at least 50% cost
Cable assembly offer,help you save prction time
Large stock,short lead time and easy to buy
We can provide OEM/ODM service and cable assembly solution
it has excellent compatibility with many leading supplier
our company has over 9 years experience and strong professional research and development capabilities.Advanced development and management, comprehensice R&D TESTING and highly automatic prction line make our prcts high reliablilyty and high performance.
Our comapny has passed ISO90001,and got CE, REACH, RoHS and SGS certification

FAQ

1. Are your company a professional manufacturer?
Raymo: Yes, we SGS audited manufacturer
2. What is the MOQ?
Raymo: No MOQ limited, depend on customer real needs.
3. Free sample?
Raymo: Available. Any needs, please contact us.
4. What about the delivery time?
Raymo: 3-5 working days for samples, 5-7 working days for mass prction.
5.What is your payment terms?
Raymo: 100% T/T in advance when customer place an order.
6. Does your prct have any warranty?
Raymo: Yes, all of our connectors can work normally after 5000 cycles mating, our factory has instruments to tested them before shipping. Damage due to misuse, treatment and unauthorized modifications and repairs are not covered by our warranty.

If you couldn't find exact items you want,PLS kindly email us exact models you need, best price & each model specification details will be provided to you soon. Solve the original brand's high cost and long lead time!
