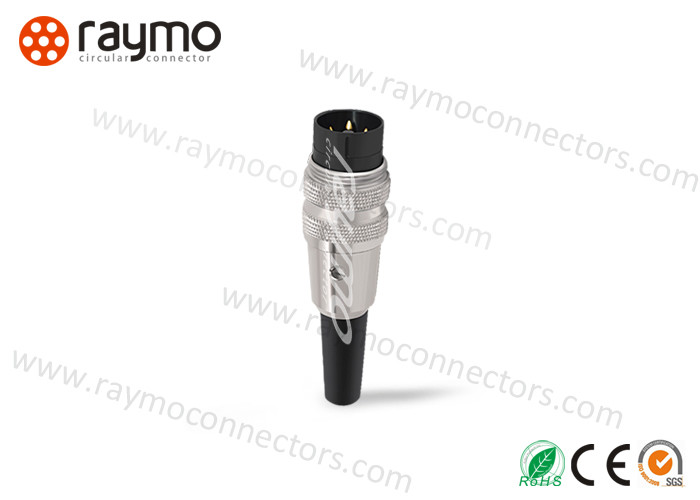

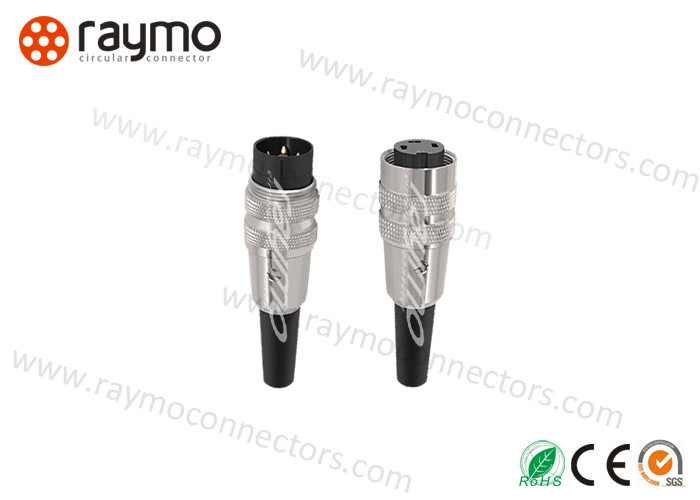

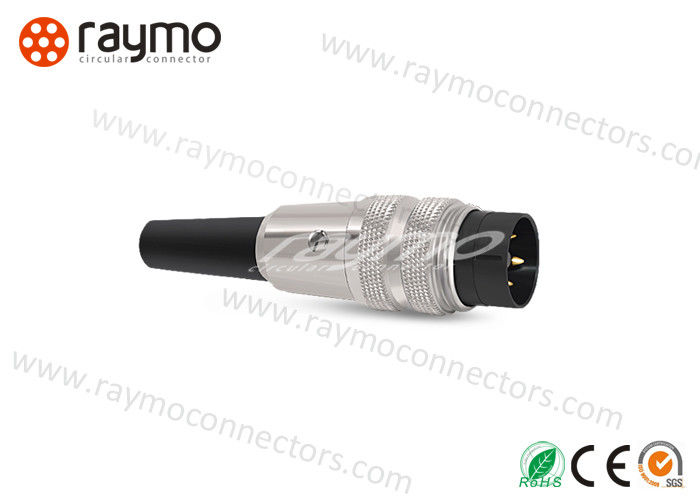

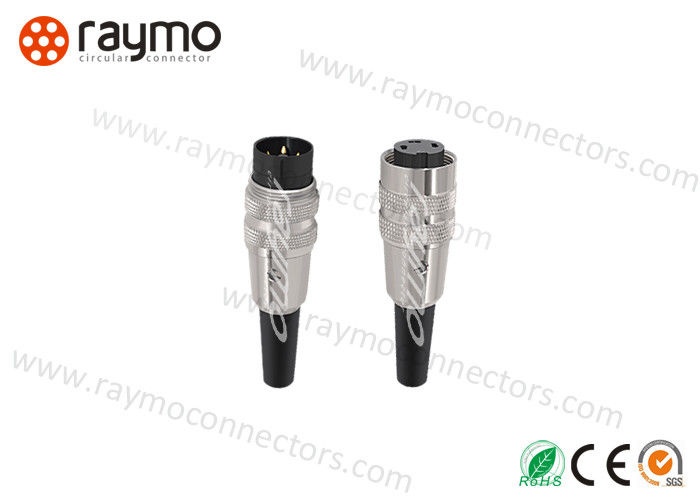

M16 680series Threaded Electrical Connector , Male Coaxial Cable DIN 12pin

M16 680series Threaded Electrical Connector , Male Coaxial Cable DIN 12pin
M16 680series Threaded Electrical Connector , Male Coaxial Cable DIN 12pin M16 680series Threaded Electrical Connector , Male Coaxial Cable DIN 12pin M16 680series Threaded Electrical Connector , Male Coaxial Cable DIN 12pin M16 680series Threaded Electrical Connector , Male Coaxial Cable DIN 12pin
اطلاعات پایه
محل منبع: شنژن، گوانگدونگ، چین
نام تجاری: RAYMO
گواهی: Reach SGS RoHS2.0 CE
Model Number: DIN connector M16 680 Series
مقدار حداقل تعداد سفارش: 1 قطعه/قطعه
قیمت: negotiable
Packaging Details: Plastic Bag & Carton
زمان تحویل: 5-7 روز کاری
Payment Terms: T/T, D/A, D/P,L/C, MoneyGram, Western Union
قابلیت ارائه: 5000تکه/هفته
اکنون تماس بگیرید
Prct Name: Din Connector male connector Shell size: M16 680Series
Contact no.: 4pin male contact عایق: PPS
Shell Color: silver colour سیستم قفل: اصلاح پیچ
برجسته کردن:

threaded wire connectors,threaded cable connectors

,

threaded cable connectors

DIN 12pin male cable connectors with threaded joint M16 680series



Main Features
Technical Charactueristics



Mechanical data Insertion force/contact ≤ 5.0 N 1
Withdrawal force/contact ≥ 1.2 N (3-8 poles)
≥ 0.9 N (12 poles) 1
Tightening torque connector 1-3 Nm
Tightening torque nut 1-3 Nm
Protection class IP40 2



Connectable conductors for solder area Section ≤ 0.75 mm² (AWG 20) (3-8 poles); ≤ 0.25 mm² (AWG 24) (12 poles)



Electrical data



Contact resistance ≤ 5 mΩ
Rated current 5 A (Tamb 40 °C, 3-8 poles);3 A (Tamb 40 °C, 12 poles)
Rated voltage with pollution degree 1:
300 V (versions 30, 40, 50/6, 60, 70)
100 V (versions 50, 71, 80, 81)
160 V (Polbild 120)
with pollution degree 2:
250 V (versions 30, 40)
32 V (versions 50, 71, 80, 81)
160 V (versions 50/6, 60, 70, 120)
Rated impulse voltage 1500 V (versions 30, 40, 50/6, 60,70, 120)
500 V (versions 50, 71, 80, 81)
Material group II (IEC)/1 (UL) (400 ≤ CTI < 600)
Overvoltage category I
Insulation resistance > 100 MΩ








 PHOTOS



M16 680series Threaded Electrical Connector , Male Coaxial Cable DIN 12pin 0



RAYMO Company Intrce



As manufacturer located in Shenzhen, focusing on manufacturing connectors and cable assemblies serive more than 150 countries since 2010.
Raymo Connectors is committed to working closely with its customers to equip their application with the most appropriate connector and cable system.  Our prct range comprises over 3,000 standard items and we are always prepared to develop customized solutions for specific requests.

RAYMO Prcts Applicaiton
  • Medical LIKE Therapy applications
  • Test & measurement LIKE Automation
  • Transport  LIKE Automotive
  • Defense & Security  LIKE Computers
  • Broadcast LIKE High Speed Camera
  • Energy LIKE TV and motion picture
  • Extreme LIKE Nuclear

RAYMO Certificate
FAQ

If you couldn't find exact items you want,PLS kindly email us exact models you need, best price & each model specification details will be provided to you soon. Solve the original brand's high cost and long lead time!


برچسب:

اتصالات سیم رشته‌ای,اتصالات کابل رشته‌ای,کانکتور دایره ای فلزی

threaded wire connectors,threaded cable connectors

metal circular connector
