Name: 2 3 4 5 Pin Circular Push Pull Connectors , Cable Elbow Connector Military Aviation
Brand: Shenzhen Raymo Electronics Technology Limited
SKU: FHG.0B.302.CLAC52Z
Price: 11.10 USD
Availability: InStock

2 3 4 5 Pin Circular Push Pull Connectors , Cable Elbow Connector Military Aviation

اطلاعات پایه

محل منبع:	شنژن ، چین
نام تجاری:	RAYMO
گواهی:	SGS, CE, RoHS2.0, ISO:9001-2015, REACH
Model Number:	FHG.0B.302.CLAC52Z

مقدار حداقل تعداد سفارش:	1 قطعه/قطعه
قیمت:	negotiable
Packaging Details:	Plastic Bag & Carton
زمان تحویل:	5-7 روز کاری
شرایط پرداخت:	Western Union، L/C، D/A، D/P، T/T، MoneyGram
Supply Ability:	5000 Pieces / Week

اکنون تماس بگیرید

Type:

Compatible LEMO connector B K S series

مواد تماس تلفنی:

برنج

ماده عایق:

PPS

نوع اتصال دهنده:

جوش

Endurance:

≥5000cycles

کاربرد:

خودرو

برجسته کردن:

electronics component connectors,cable connector plug

cable connector plug

FHG 0B elbow plug 2 3 4 5 pin circular push pull connector, military aviation micro elbow connector, FHG.0B.302

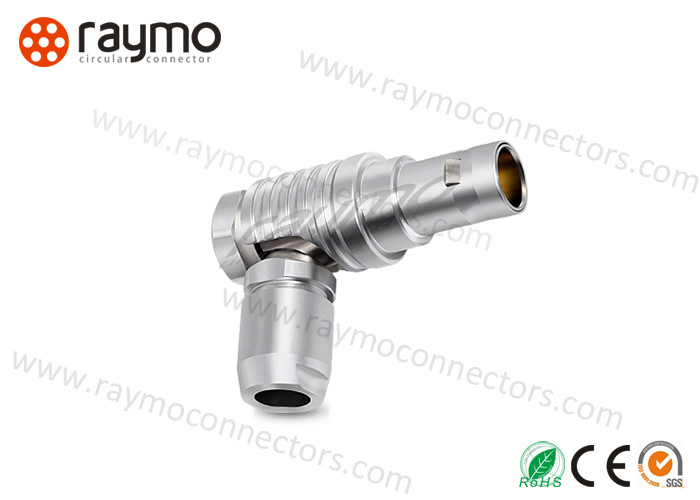

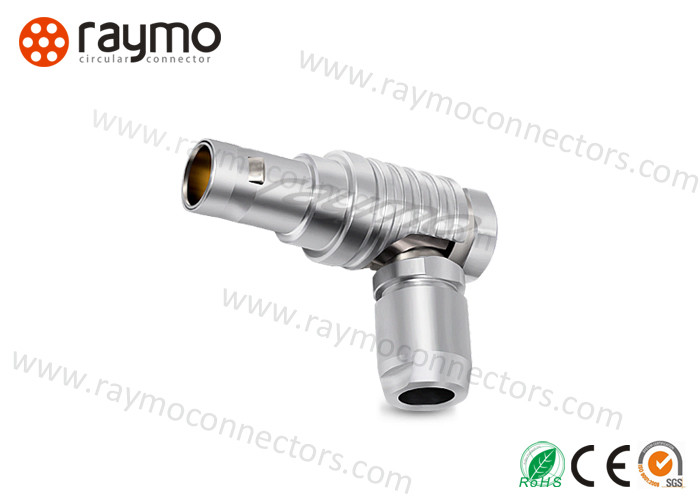

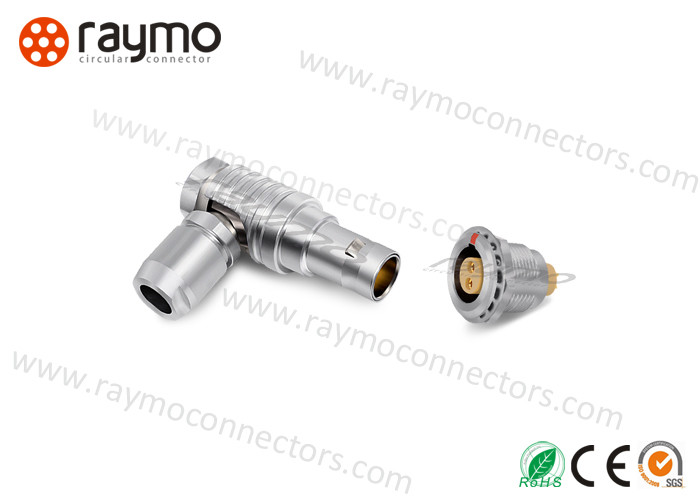

Description FHG.0B.302.CLAC52Z

0B Circular Push Pull Connector, 2pins, male solder contacts
Elbow connector with natural shell
mating cycles is more than 5000 times
IP50 connector

B Series connector with the following main features

1.Shell size	00 to size 3(#00, #0, #1, #2, #3, #4)
2. Multi-pole types	2 to 32 contacts
3. Security	push-pull self-latching system
4.contacts (straight or elbow)	Solder ,print or crimp
5.Packing	High packing density for space saving
7.Key options	0°,30°,45°,60° and other de
8. Male contacts and female contacts	brass with gold-plated surface
9. Out shells	brass with Natural chrome nickel-plated surface
10. Insulator	PPS is standars, PEEK
11.Screening	360 angle screening for full EMC shielding.

Shell size and contacts for option

Shell size	Contacts no. ( Both with Solder & PCB type )
Shell size	Contacts no. ( Both with Solder & PCB type )
RM-0B	2	3	4	5	6	7	9
RM-1B	2	3	4	5	6	7	8	10	12	14	16
RM-2B	2	3	4	5	6	7	8	10	12	14	16	19
RM-3B	3	4	6	8/(6+2)	9(8+1)	10	12	14(13+1)	14	16	18	21	26	30	32
RM-4B	7	10	24

Raymo Company information

RAYMO is a manufactuer that:

Focus on manufacturing & exporting various metal & plastic circular push pull connectors, cable assembly.
Can be 100% compatible with original LEMO • •FISCHER• HIROSE • BINDER •Military 38999
Series has RM-B, RM-K, RM-S, RM-F,RM-E,RM-HR10A, RM-P, RM-M4, RM-M12, RM-M16, BNC, B680, B423 , 38999, 26482
CO, Form A, Form E for customer clearance
CE, ROHS, REACH, ISO:90001-2015, SGS Audited manufacturer
All the items can work normally after 5000times mating

Application

Data Acquisition
Data Transfer Equipment
Mle Power
Sensor & Sensor Systems Instrumentation
Test and MeaAnalysis Application

Exhibition

2020.11 Electronica Munich, Germany
2019 9.24-9.26 Testing Expo, Shanghai
2018 11.12-11.15 Electronica Munich, Germany
2017 9.11-9.16 NAB Show,Netherlands
2016 4.11-4.15 HK Fair
2015 10.2-10.7 ICEEB, Brasil
2014 10.11-10.15 HK Fair
2014 4.11-4.15 HK Fair

Custom service

Common model connectors stock: for common usually models, we will stock materials, once you order, we can ship out in 3 days.
Cable assembly service: we can supply cable assembly service according to your requirements.
Technical support: Any questions or problems in your connector’s or cable’s working, our technical department will supply professinal support to help you solve them
Cable assembly solution supply: We can make cable assembly service solution to meets you need.
Customized connector service: if our present connectors can’t suit exactly what you need, we can open new mould for you.

RM-B Series FHG Shell type dimension and pictures

2 3 4 5 Pin Circular Push Pull Connectors , Cable Elbow Connector Military Aviation 0

Keys

2 3 4 5 Pin Circular Push Pull Connectors , Cable Elbow Connector Military Aviation 1

Our Certificate

CE
Rohs
ISO:9000-2015
REACH
SGS

FAQ

1.Can I order a small list ?
---Of course, you can.
2.What quote do you offer?
---FOB , CIF and others ways according the your needs.
3.How transport?
---Sea Freight, Air Freight and others Express Delivery ways for you.
4.What is the quality of your prcts guarantee?
---We have passed ISO9001:2015 Quality Management System Certification, CQM Quality Management System Certification and IQNet Quality Management System Certification, If the quality doesn't accord the standard, you can exchange the goods for free.
5.Do you have after-sales service?
---Certainly,you can contact us at any time.

If you couldn't find exact items you want,PLS kindly email us exact models you need, best price & each model specification details will be provided to you soon. Solve the original brand's high cost and long lead time!
