خانه محصولاتکانکتور نصف ماه" 360 Degree EMC Shield Coaxial Cable Coupler 50ohm Contacts For Ultrasonic Device"

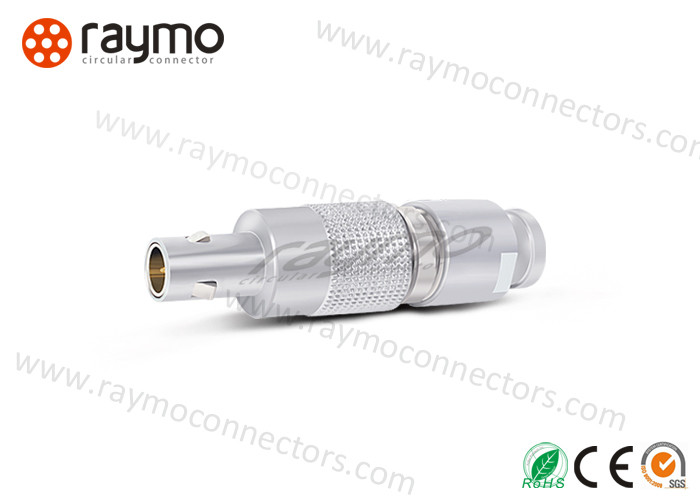

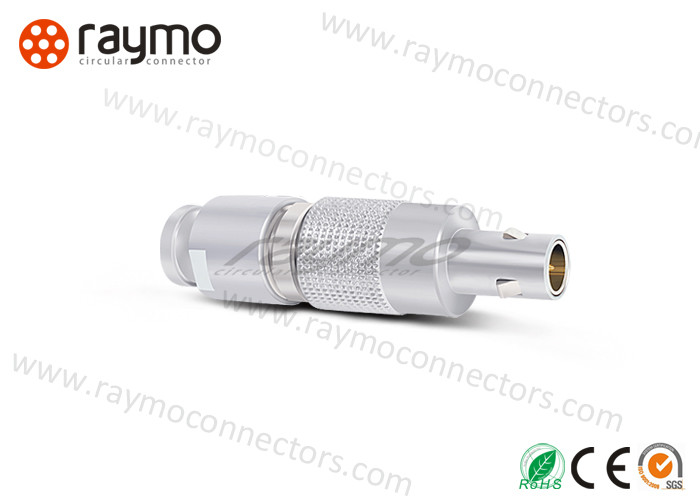

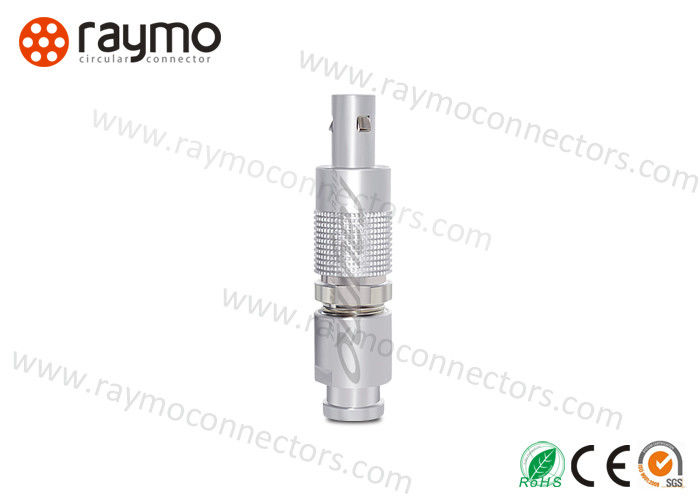

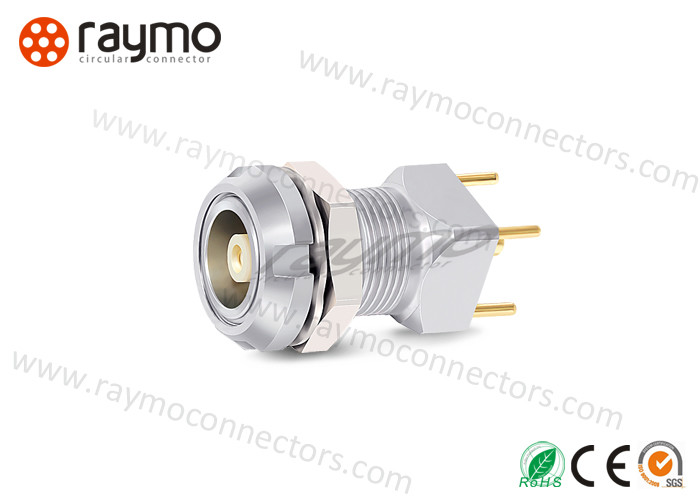

" 360 Degree EMC Shield Coaxial Cable Coupler 50ohm Contacts For Ultrasonic Device"

" 360 Degree EMC Shield Coaxial Cable Coupler 50ohm Contacts For Ultrasonic Device"
" 360 Degree EMC Shield Coaxial Cable Coupler 50ohm Contacts For Ultrasonic Device" " 360 Degree EMC Shield Coaxial Cable Coupler 50ohm Contacts For Ultrasonic Device" " 360 Degree EMC Shield Coaxial Cable Coupler 50ohm Contacts For Ultrasonic Device" " 360 Degree EMC Shield Coaxial Cable Coupler 50ohm Contacts For Ultrasonic Device" " 360 Degree EMC Shield Coaxial Cable Coupler 50ohm Contacts For Ultrasonic Device"
اطلاعات پایه
محل منبع: شنژن ، چین
نام تجاری: RAYMO
گواهی: SGS, RoHS2.0, ISO:9001-2015, CE, REACH
Model Number: FFA.1S.250.CLAC42Z
مقدار حداقل تعداد سفارش: 5 قطعه/قطعه
قیمت: negotiable
Packaging Details: Plastic Bag & Carton
Delivery Time: 5-7wds
شرایط پرداخت: Western Union ، L/C ، D/A ، D/P ، T/T
قابلیت ارائه: 5000تکه/هفته
اکنون تماس بگیرید
Type: FFY type cable plug Shell Size: 00S, 0S, 1S, 2S
Contacts: COAXIAL PIN, 50ohm Gender: Male contact
Insulator: PPS, PEEK is available رتبه بندی IP: IP50
برجسته کردن:

cable elbow connector,cable to cable connector

,

cable to cable connector

LEMOS S SERIES COAXIAL 50OHM CIRCULAR PUSH PULL CONNECTORS FFY.1S.250.CLAC42 FOR ULTRASONIC DEVICE


RAYMO Factory Intrce





RAYMO Provided Service for YOU



Description

RAYMO P/N

Lemo P/N

SAMPLES

RM-FFY-1SC-250-JS42Z

FFY.1S.250.CLAC42Z

FREE SAMPLES



Shell Size and Contact No.



Shell size Contacts no. ( Both with Solder & PCB type )
00S 1(coaxial) 　 　 　 　 　
0S 1(coaxial) 2 3 4 　 　
1S 1(coaxial) 2 3 4 5 6



Technical Characteristics



Technical Characteristics
Temperature Range - 65° C, +200° C Resistance to vibrations 15 g [10 Hz - 2000 Hz]
Shell Material brass with chrome plated Humidity up to 95% at 60° C/140F
Shock Resistance 100 g [ 6 ms] Salt spray corrosion test >144hr
Climatical Category 50/175/21 Shielding (min) > 75 dB [ at 10 MHz], > 40 dB [ at 1 GHz]
IP Rating IP 50 Endurance(shell) 5000 mating cycles




Applications
Pictures and Dimension

" 360 Degree EMC Shield Coaxial Cable Coupler 50ohm Contacts For Ultrasonic Device" 0



Why choose us
  • 8 years focus on connectors
  • Save your costs at least 50%
  • professional teams in R&D,manufacture,quality testing and export sales to make sure your connectors perfect and have relatively low prices
  • customized your own connectors according to your requirement
  • Factory supplier,provide fast delivery and perfect after-sales service you can purchase without scruple.
  • Help customers to make model selection : Just e-mail us and give the prtion information
FAQ
  1. Can I order a small list ?, yes, you can, 1 piece is ok.
  2. What quote do you offer? EXW, FOB, CIF  and others ways according the your needs.
  3. How transport?  Sea Freight, Air Freight and others Express Delivery ways for you.
  4. What is the quality of your prcts guarantee? We have passed ISO9001:2015 Quality Management System Certification, CQM Quality Management System Certification and IQNet Quality Management System Certification, If the quality doesn't accord the standard, you can exchange the goods for free.
  5. Do you have after-sales service? Certainly,you can contact us at any time.
