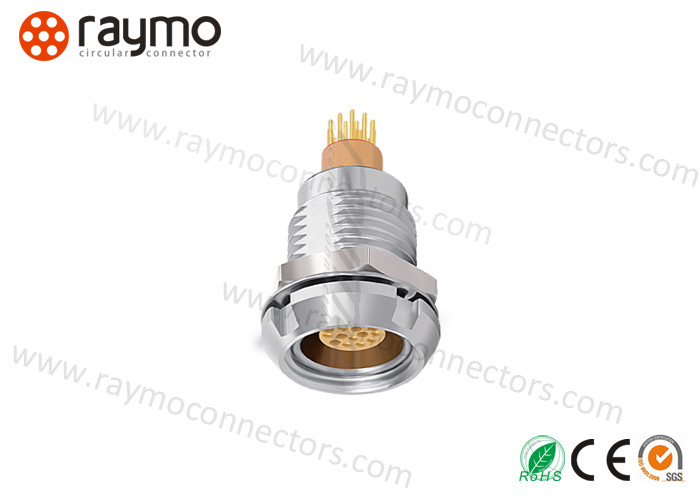

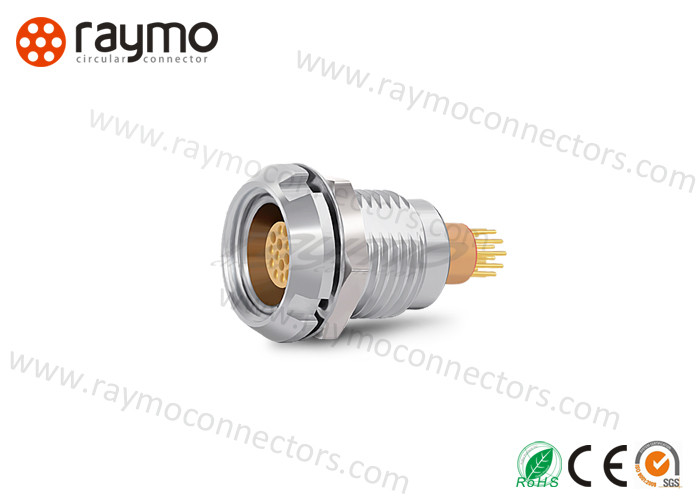

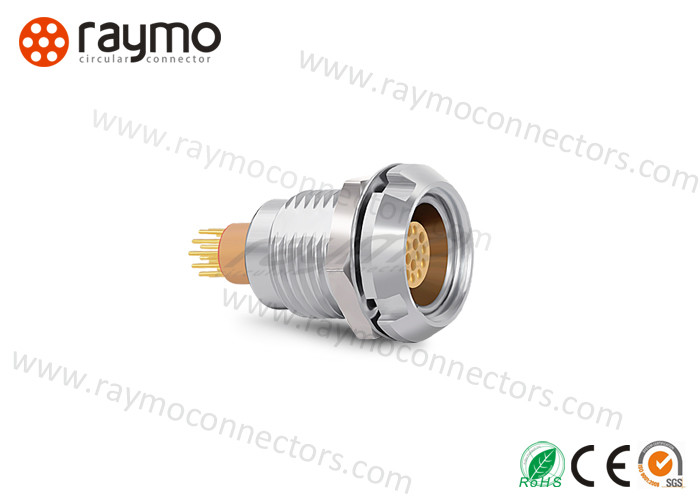

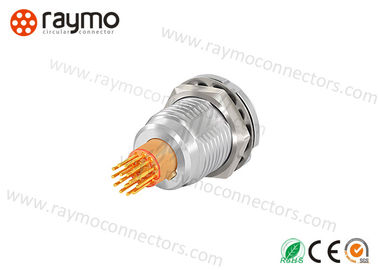

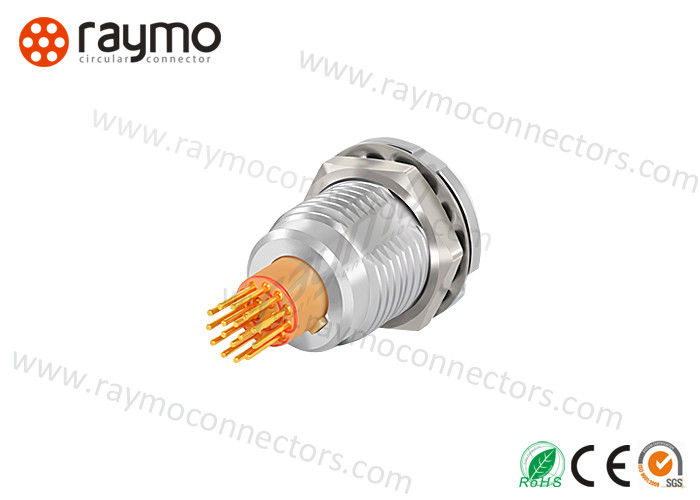

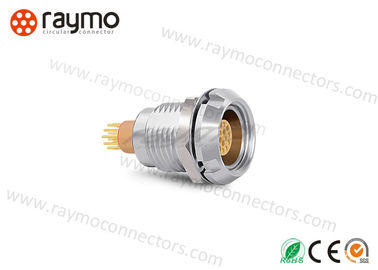

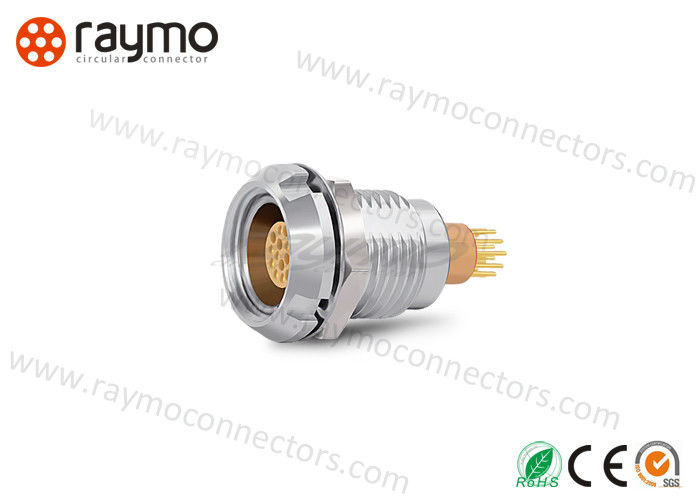

Name: 2 Ways Miniature Circular Connectors , Camera Cable Connector Raymo B Series
Brand: Shenzhen Raymo Electronics Technology Limited
SKU: ECG.1B.302.CLN
Price: 12.30 USD
Availability: InStock

2 Ways Miniature Circular Connectors , Camera Cable Connector Raymo B Series

اطلاعات پایه

محل منبع:	شنژن ، چین
نام تجاری:	RAYMO
گواهی:	REACH, SGS, RoHS2.0, ISO:9001-2015, CE
Model Number:	ECG.1B.302.CLN

مقدار حداقل تعداد سفارش:	5 قطعه/قطعه
قیمت:	negotiable
Packaging Details:	Plastic Bag & Carton
Delivery Time:	5-7wds
شرایط پرداخت:	Western Union ، L/C ، D/A ، D/P ، T/T
قابلیت ارائه:	5000تکه/هفته

اکنون تماس بگیرید

Type:

Miniature Circular Connector

Contact no.:

2 way, 2,3,4,5,6, 7, 9pins are available too

عایق:

PPS/PEEK

رتبه بندی IP:

IP50

Endurance:

5000 times push pull

Connector type:

welding/PCB straight and Elbow contacts

برجسته کردن:

mini electrical connectors,miniature electrical connectors

miniature electrical connectors

2 Ways Miniature Circular Connector, Raymo B Series Industry Camera Push Pull Connector ECG.1B.302.CLN

Company intrce

SHENZHEN RAYMO ELECTRONICS TECHNOLOGY LIMITED as a professional in design and manufacture all kinds of connectors and special cables, have accumulated rich experience in development and prction for kinds of cables and its related connector adapter.With RED/Teradek Bond/ARRI Camera Cable, Canon / Sony Camera Power Cable, SDI Cable, USB Cable, Video Cable, CCD Cable... We supply different OEM/ODM services serve as different application and requirement.
Connectors are compatible with Lemo,Fischer, Binder, Hirose, and 38999 etc.
Our prcts are widely used in kinds of harsh environment and applications, like industrial control devices, medical equipment, measuring and inspecting equipment, audio & visual equipment and military, etc. Furthermore, it has excellent compatibility with many leading supplier.

Descriotipn of goods

Alternative with LEMO B ECG and L G4 series
Multipoles contacts 2 ways in PCB contacts
Miniature connectors for s

RAYMO P/N	Lemo P/N	P/N
RM-ECG-1BC-302-KP	ECG.1B.302.CLN	G51L0C-P02

Shell Size and Contacts

hell size	Contacts no. ( Both with Solder & PCB type )
hell size	Contacts no. ( Both with Solder & PCB type )
00	2	3	4
0B	2	3	4	5	6	7	9
1B	2	3	4	5	6	7	8	10	12	14	16
2B	2	3	4	5	6	7	8	10	12	14	16	19
3B	3	4	6	8/(6+2)	9(8+1)	10	12	14(13+1)	14	16	18	21	26	30	32
4B	7	10	24

Technical Characteristics

Technical Characteristics
Temperature Range	- 40° C, +125° C	Resistance to vibrations	15 g [10 Hz - 2000 Hz]
Shell Material	Brass with chrome plated	Humidity	up to 95% at 60° C/140F
Shock Resistance	100 g [ 6 ms]	Salt spray corrosion test	>144hr
Climatical Category	50/175/21	Shielding (min)	> 75 dB [ at 10 MHz], > 40 dB [ at 1 GHz]
IP Rating	IP50	Endurance(shell)	5000 mating cycles

Connectors challenging applications and environments including

Automotive
Audio-video
Aviation
Communications Industrial Control
Information Systems
Machines, Medical, Military, Test and Measurement
Data Acquisition

Why choose us

100% compatible lemo connector
Help you save at least 50% cost
Cable assembly offer,help you save prction time

FAQ

1.Can I order a small list ?
Raymo:Of course, you can.
2.What quote do you offer?
Raymo:FOB , CIF and others ways according the your needs.
3.How transport?
Raymo:Sea Freight, Air Freight and others Express Delivery ways for you.
4.What is the quality of your prcts guarantee?
We have passed ISO9001:2015 Quality Management System Certification, CQM Quality Management System Certification and IQNet Quality Management System Certification, If the quality doesn't accord the standard, you can exchange the goods for free.
5.Do you have after-sales service?
Raymo:Certainly,you can contact us at any time.

If you couldn't find exact items you want,PLS kindly email us exact models you need, best price & each model specification details will be provided to you soon. Solve the original brand's high cost and long lead time!
