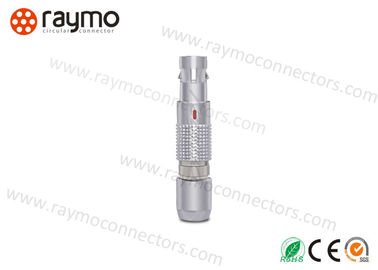

FGG 00B 2 3 4 Pin 6.4mm Male Solder Circular Connectors

FGG 00B 2 3 4 Pin 6.4mm Male Solder Circular Connectors
FGG 00B 2 3 4 Pin 6.4mm Male Solder Circular Connectors
اطلاعات پایه
محل منبع: شنژن ، چین
نام تجاری: RAYMO
گواهی: RoHS2.0, ISO:9001-2015, CE , SGS, REACH
شماره مدل: FGG 00b
مقدار حداقل تعداد سفارش: 1 قطعه
قیمت: negotiable
جزئیات بسته بندی: 100pc/ctn
زمان تحویل: 5-7 روز کاری
شرایط پرداخت: Western Union ، T/T ، D/P ، D/A ، L/C ، MoneyGram
قابلیت ارائه: 5000تکه/هفته
اکنون تماس بگیرید
نام PRCT: کانکتور کشش را فشار دهید نوع: شاخه زن مرد
اندازه پوسته: 00b 6.4mm شماره تماس.: 2 3 4 پین
پایانه: لحیم کردن رتبه بندی IP: IP50
برجسته کردن:

6.4mm Male Solder Circular Connectors,FGG Male Solder Circular Connectors,00B 4 Pin Circular Connectors

,

FGG Male Solder Circular Connectors

,

00B 4 Pin Circular Connectors

 FGG 00B 2 3 4 pin 6.4mm male solder push pull alternative, small circular connectors





RAYMO P/N Lemo P/N
RM-FGG-00-302-JS32Z FGG.00B.302.CLAD32Z



Raymo company specilized in many kinds of alternative connector, all our connectors can work with original well, since 2010, we keep improving our technic and offer customer with high quality prcts, for the return, we have got many good feekbacks and build a long-term and stable cooperationship.

RM-B series metal circular push pull connector with below features:



  • Secure high performance push-pull self-locking system
  • High pin density contributing to equipment miniaturization
  • Alignment Key and Polarized Keying System to avoid cross-interface
  • 360° EMC shielding
  • Robust and shock resistant designs
  • Functional in a wide temperature range from -50°C to +250°C
  • Available solder, PCB and right angle PCB contact
Shell size Contacts no. ( Both with Solder & PCB type )
RM-00 2 3 4 　 　 　 　 　 　 　 　 　 　 　 　
RM-0B 2 3 4 5 6 7 9 　 　 　 　 　 　 　 　
RM-1B 2 3 4 5 6 7 8 10 12 14 16 　 　 　 　
RM-2B 2 3 4 5 6 7 8 10 12 14 16 19 　 　 　
RM-3B 3 4 6 8/(6+2) 9(8+1) 10 12 14(13+1) 14 16 18 21 26 30 32
RM-4B 7 10 24 　 　 　 　 　



Technical Characteristics
Temperature Range
-55°C, +250°C
Resistance to vibrations
15 g [10 Hz - 2000 Hz]
Shock Resistance
100 g [ 6 ms]
Salt spray corrosion test
>96hrs
Climatical Category
50/175/21
Humidity
Up to 95% at 60°C
IP Rating
IP50
Certifications
ISO9001/ CE/ ROHS2.0/ SGS



FGG 00B 2 3 4 Pin 6.4mm Male Solder Circular Connectors 0

Applications
  • Medical like Diagnostic devices
  • Instrumentation like Test & measurement
  • Transport Avionics
  • Energy like Nuclear
  • Defense & Security like Communication systems
  • Broadcast like Studios and outside broadcasting
  • Extreme like Motorsports
FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in PE bag and brown cartons.
OEM&ODM is available after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 100% or Alibaba on-line order are both OK.
Q3. How about your delivery time?
A: Generally, it will take 5~7 working days after receiving your advance payment.
Q4. Can you prce according to the samples?
A: Yes, we can prce by your samples or technical drawings. We can build the molds and fixtures.
Q5. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
