خانه محصولاتاتصالات فشاری چرخشی دایره‌ای0B Shell IP50 9.5mm circular metal connectors 4 Pin

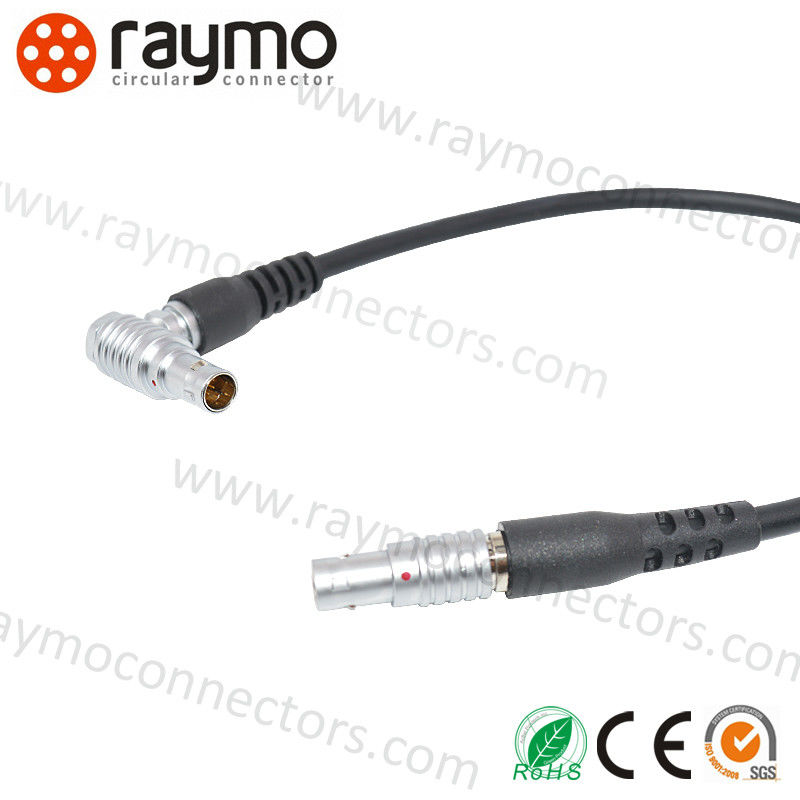

0B Shell IP50 9.5mm circular metal connectors 4 Pin

0B Shell IP50 9.5mm circular metal connectors 4 Pin
0B Shell IP50 9.5mm circular metal connectors 4 Pin 0B Shell IP50 9.5mm circular metal connectors 4 Pin
اطلاعات پایه
محل منبع: شنژن ، چین
نام تجاری: RAYMO
گواهی: RoHS2.0, ISO:9001-2015, CE , SGS, REACH
شماره مدل: fgg.0b.304.clad42z
مقدار حداقل تعداد سفارش: 1 قطعه
قیمت: negotiable
جزئیات بسته بندی: 100pc/ctn
زمان تحویل: 5-7 روز کاری
شرایط پرداخت: Western Union ، T/T ، D/P ، D/A ، L/C ، MoneyGram
قابلیت ارائه: 5000تکه/هفته
اکنون تماس بگیرید
نام PRCT: کانکتور کشش را فشار دهید نوع: وصل کردن
اندازه پوسته: 0B شماره تماس.: 4 پین
پایانه: لحیم کردن رتبه بندی IP: IP50
برجسته کردن:

0B Shell Circular Metal Connectors,9.5mm Circular Metal Connectors,IP50 4 Pin Circular Connector

,

9.5mm Circular Metal Connectors

,

IP50 4 Pin Circular Connector

 high performance 9.5mm diameter electrical signal wire metal push pull plug, circular connector 4 pin

100% compatible with LEMO original FGG.0B.304.CLAD42Z



RAYMO P/N LEMO P/N
RM-FGG-0BC-304-JS42Z FGG.0B.304.CLAD42Z



As a creative customer-oriented manufacturer located in Shenzhen, Raymo focusing on manufacturing connectors and cable assemblies to serve over 75 countries and regions since 2010.



We are specilized in many kinds of alternative connector such as LEMO, REDEL, , FISHCER, HIROSE, BINDER..., all our connectors can work with original.

RM-B series metal circular push pull connector with below features:



  • can be 100% compatible with original lemo connector
  • 360 angle screening for full EMC shielding.
  • Robust and shock resistant designs ideal for equipment used in the field
  • Push pull locking metal connector B-series connector, cable to cable connector, free socket, inline connector
  • Increased safety and user friendliness mechanical and color coding prevent misconnection
  • Increased equipment life span guiding mechanism optimally protects the contacts



Technical Characteristics
Temperature Range
-55°C, +250°C
Resistance to vibrations
15 g [10 Hz - 2000 Hz]
Shock Resistance
100 g [ 6 ms]
Salt spray corrosion test
>96hrs
Climatical Category
50/175/21
Humidity
Up to 95% at 60°C
IP Rating
IP50
Certifications
ISO9001/ CE/ ROHS2.0/ SGS



0B Shell IP50 9.5mm circular metal connectors 4 Pin 0

Applications
RAYMO connectors have been widely used in the areas of telecommunication, electronics, medical equipments, aviation, audio-video, petroleum, motor and power industries, electrical signal connection, IC control systems, test and measurement instruments, ect.

0B Shell IP50 9.5mm circular metal connectors 4 Pin 1



FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in PE bag and brown cartons.
OEM&ODM is available after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 100% or Alibaba on-line order are both OK.
Q3. How about your delivery time?
A: Generally, it will take 5~7 working days after receiving your advance payment.
Q4. Can you prce according to the samples?
A: Yes, we can prce by your samples or technical drawings. We can build the molds and fixtures.
Q5. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
