خانه محصولاتاتصالات فشاری چرخشی دایره‌ای10 Pin FGG FEG 1B 2B Circular Push Pull Connectors 16.5mm Shell

10 Pin FGG FEG 1B 2B Circular Push Pull Connectors 16.5mm Shell

10 Pin FGG FEG 1B 2B Circular Push Pull Connectors 16.5mm Shell
10 Pin FGG FEG 1B 2B Circular Push Pull Connectors 16.5mm Shell 10 Pin FGG FEG 1B 2B Circular Push Pull Connectors 16.5mm Shell
اطلاعات پایه
محل منبع: شنژن ، چین
نام تجاری: RAYMO
گواهی: RoHS2.0, ISO:9001-2015, CE , SGS, REACH
شماره مدل: fgg feg 1b 2b 310
مقدار حداقل تعداد سفارش: 1 قطعه
قیمت: negotiable
جزئیات بسته بندی: 100pc/ctn
زمان تحویل: 5-7 روز کاری
شرایط پرداخت: Western Union ، T/T ، D/P ، D/A ، L/C ، MoneyGram
قابلیت ارائه: 5000تکه/هفته
اکنون تماس بگیرید
نام PRCT: کانکتور انتشار سریع نوع: پلاگین FGG FEG
اندازه پوسته: 11-16.5 میلی متر شماره تماس.: 10 پین
پایانه: لحیم کردن رتبه بندی IP: IP50/IP60
برجسته کردن:

2B Circular Push Pull Connectors,FEG Circular Push Pull Connectors,FGG 10 Pin Circular Connector

,

FEG Circular Push Pull Connectors

,

FGG 10 Pin Circular Connector

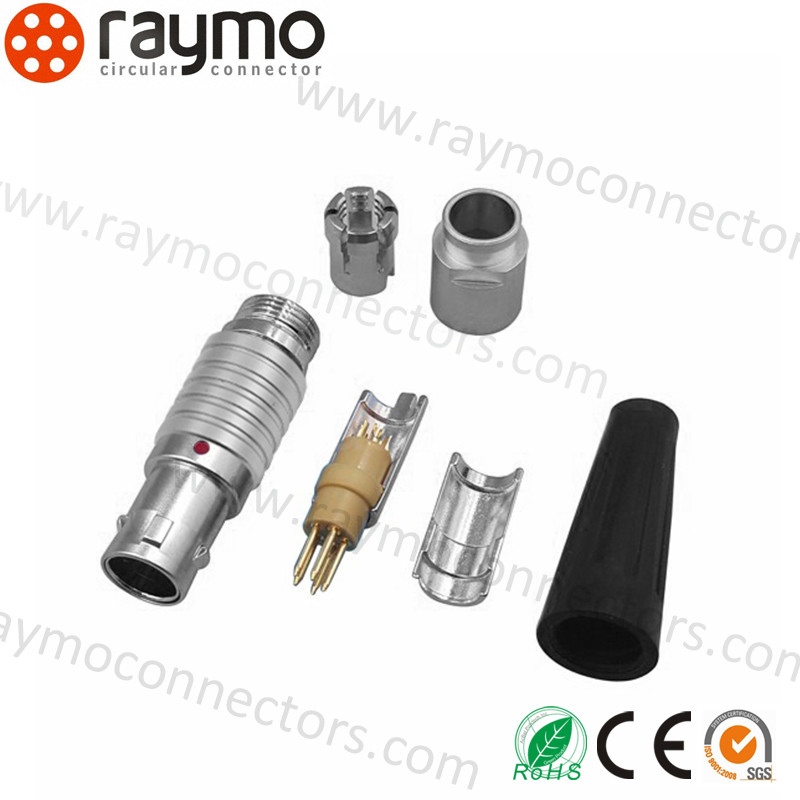

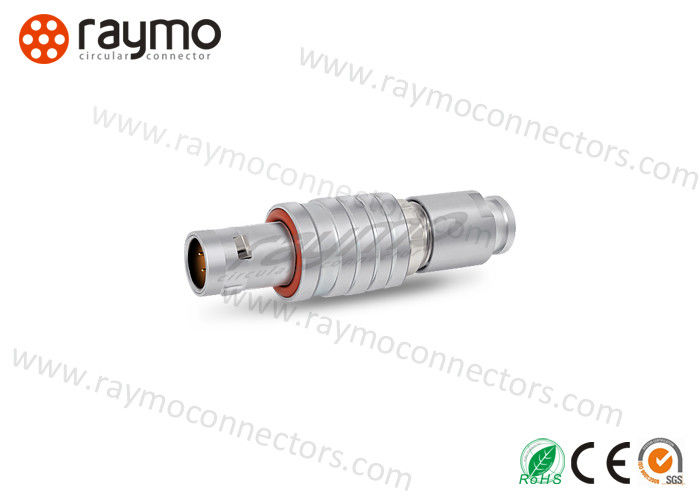

FGG FEG 1B 2B 310 push pull alternative straight cable male plug, 10 pin circular connector





RAYMO is a manufacturer main in:
 Prct description
RM-B series metal circular push pull connector with below features:



  • Secure high performance push-pull self-locking system
  • High pin density contributing to equipment miniaturization
  • Alignment Key and Polarized Keying System to avoid cross-interface
  • 360° EMC shielding
  • Robust and shock resistant designs
  • Functional in a wide temperature range from -50°C to +250°C
  • Available solder, PCB and right angle PCB contact

For LEMO B series compatible connectors, our factory has make:



Shell size we have 00B, 0B, 1B, 2B, 3B
Model we have

Plug: FGG, FEG, FFG, FNG, FHG, FAG

Socket: EGG, ECG, EEG, EFG, EHG, EPG, EXG, HGG, HHG, HEG, RGG, PFG, PHG



For example:



Raymo P/N LEMO P/N
RM-FGG-0BC-302-JS42Z FGG.0B.302.CLAD42Z
RM-EGG-0BC-302-KP EGG.0BC.302.CLN



FEA.1B.310.CLAD62 = RM-FEA-1BC-310-JS62 .Straight cable plug with key(A), two keys 30 degree, 1B series, multipole 10 contacts, outer shell in natural chrome-plated brass, PPS insulator, male solder contacts, collet for 5.2-6.2mm diameter cable, nut for without bend relief, IP50.



Technical Characteristics
Temperature Range
-55°C, +250°C
Resistance to vibrations
15 g [10 Hz - 2000 Hz]
Shock Resistance
100 g [ 6 ms]
Salt spray corrosion test
>96hrs
Climatical Category
50/175/21
Humidity
Up to 95% at 60°C
IP Rating
IP50
Certifications
ISO9001/ CE/ ROHS2.0/ SGS



10 Pin FGG FEG 1B 2B Circular Push Pull Connectors 16.5mm Shell 0
Applications
RAYMO connectors have been widely used in the areas of telecommunication, electronics, medical equipments, aviation, audio-video, petroleum, motor and power industries, electrical signal connection, IC control systems, test and measurement instruments, ect.
FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in PE bag and brown cartons.
OEM&ODM is available after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 100% or Alibaba on-line order are both OK.
Q3. How about your delivery time?
A: Generally, it will take 5~7 working days after receiving your advance payment.
Q4. Can you prce according to the samples?
A: Yes, we can prce by your samples or technical drawings. We can build the molds and fixtures.
Q5. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.

برچسب:

پلاگین کانکتور کابل,کانکتورهای قطعات الکترونیک,کانکتورهای کابل الکترونیک

2B Circular Push Pull Connectors,FEG Circular Push Pull Connectors,FGG 10 Pin Circular Connector

electronic cable connectors
