خانه محصولاتاتصالات فشاری چرخشی دایره‌ای0B Shell 302 CLAD Alternative FGG 2 Pin Circular Connector IP50

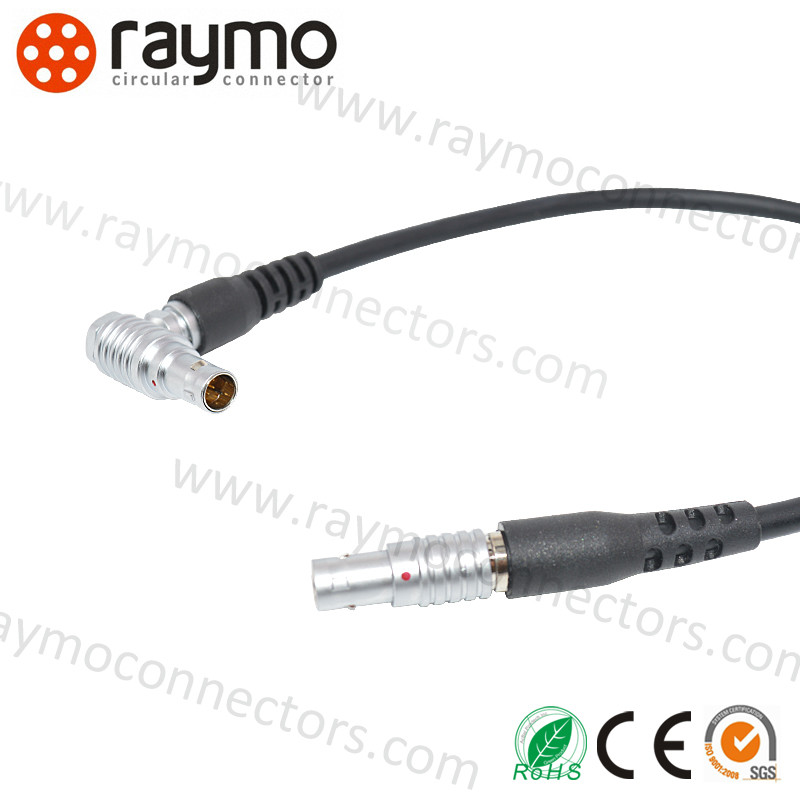

0B Shell 302 CLAD Alternative FGG 2 Pin Circular Connector IP50

0B Shell 302 CLAD Alternative FGG 2 Pin Circular Connector IP50
0B Shell 302 CLAD Alternative FGG 2 Pin Circular Connector IP50 0B Shell 302 CLAD Alternative FGG 2 Pin Circular Connector IP50
اطلاعات پایه
محل منبع: شنژن ، چین
نام تجاری: RAYMO
گواهی: RoHS2.0, ISO:9001-2015, CE , SGS, REACH
شماره مدل: RM-FGG-0BC-302-JS ** z
مقدار حداقل تعداد سفارش: 1 قطعه
قیمت: negotiable
جزئیات بسته بندی: 100pc/ctn
زمان تحویل: 5-7 روز کاری
شرایط پرداخت: Western Union ، T/T ، D/P ، D/A ، L/C ، MoneyGram
قابلیت ارائه: 5000تکه/هفته
اکنون تماس بگیرید
نام PRCT: اتصال کابل کشش را فشار دهید نوع: شاخه زن مرد
اندازه پوسته: 0b ، 9.5mm شماره تماس.: 2 پین
پایانه: لحیم کردن رتبه بندی IP: IP50/IP60
برجسته کردن:

FGG 2 Pin Circular Connector,IP50 2 Pin Circular Connector,0B Shell Waterproof Circular Connector

,

IP50 2 Pin Circular Connector

,

0B Shell Waterproof Circular Connector

IC control systems metal push pull FGG.0B.302.CLAD alternative, 2 pin circular connector

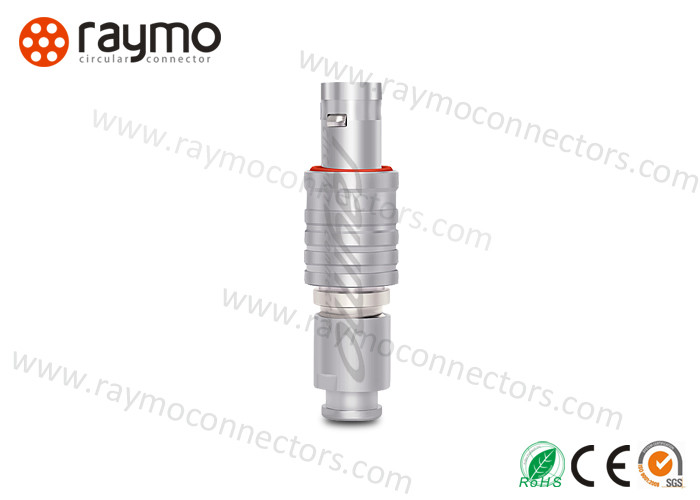

FGG.0B.302.CLAD32 = RM-FGG-0BC-302-JS32 .Straight cable plug with key(G), 0B series,  2 contacts male solder contacts, collet for 2.2- 3.2mm diameter cable, nut for without bend relief, IP50.

About Raymo

Founded in 2010, we are a manufacturer specialized in manufacturing and exporting higher-quality precision connectors. We have ability to offer customers more than 10,000 combinations and the range of our prcts is continuously increasing due to customers' specifications and re-engineering designs.



All of our prcts meets:

RM-B series metal circular push pull connector with below features:



  • Secure high performance push-pull self-locking system
  • High pin density contributing to equipment miniaturization
  • Alignment Key and Polarized Keying System to avoid cross-interface
  • 360° EMC shielding
  • Robust and shock resistant designs
  • Functional in a wide temperature range from -50°C to +250°C
  • Available solder, PCB and right angle PCB contact



Technical Characteristics
Temperature Range
-55°C, +250°C
Resistance to vibrations
15 g [10 Hz - 2000 Hz]
Shock Resistance
100 g [ 6 ms]
Salt spray corrosion test
>96hrs
Climatical Category
50/175/21
Humidity
Up to 95% at 60°C
IP Rating
IP50
Certifications
ISO9001/ CE/ ROHS2.0/ SGS



0B Shell 302 CLAD Alternative FGG 2 Pin Circular Connector IP50 0
Applications
RAYMO connectors have been widely used in the areas of telecommunication, electronics, medical equipments, aviation, audio-video, petroleum, motor and power industries, electrical signal connection, IC control systems, test and measurement instruments, ect.

0B Shell 302 CLAD Alternative FGG 2 Pin Circular Connector IP50 1



FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in PE bag and brown cartons.
OEM&ODM is available after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 100% or Alibaba on-line order are both OK.
Q3. How about your delivery time?
A: Generally, it will take 5~7 working days after receiving your advance payment.
Q4. Can you prce according to the samples?
A: Yes, we can prce by your samples or technical drawings. We can build the molds and fixtures.
Q5. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
