Name: C5-S5 Ultrasonic Probes Cables 0.5m Circular Push Pull Connectors
Brand: Shenzhen Raymo Electronics Technology Limited
SKU: ffa.00.250 + subvis male
Price: 16.00 USD
Availability: InStock

C5-S5 Ultrasonic Probes Cables 0.5m Circular Push Pull Connectors

اطلاعات پایه

محل منبع:	شنژن ، چین
نام تجاری:	RAYMO
گواهی:	SGS, REACH, RoHS2.0, ISO:9001-2015, CE
شماره مدل:	ffa.00.250 + subvis male

مقدار حداقل تعداد سفارش:	5 قطعه/قطعه
قیمت:	12USD~20USD/PCS
جزئیات بسته بندی:	کیسه پلاستیکی و کارتن
زمان تحویل:	5-7WDS
شرایط پرداخت:	Western Union ، L/C ، D/A ، D/P ، T/T
قابلیت ارائه:	5000تکه/هفته

اکنون تماس بگیرید

شرح:

کابل های کانکتری اتصال دهنده فشار دایره ای

طول کابل:

0.5 متر (طبق نیازهای واقعی مشتری)

رنگ:

برنج روکش شده با کروم طبیعی

رتبه بندی IP:

IP50

کاربرد:

پروب های اولتراسونیک C5-S5

چرخه های زندگی:

5000 بار فشار فشار

گواهی:

CE/ROHS/REACH/ISO9001/SGS

زمان پیشرو:

3-5 روز کاری

برجسته کردن:

0.5m Circular Push Pull Connectors,RoHS2.0 Circular Push Pull Connectors,Ultrasonic Probes Cables Circular Connectors

RoHS2.0 Circular Push Pull Connectors

Ultrasonic Probes Cables Circular Connectors

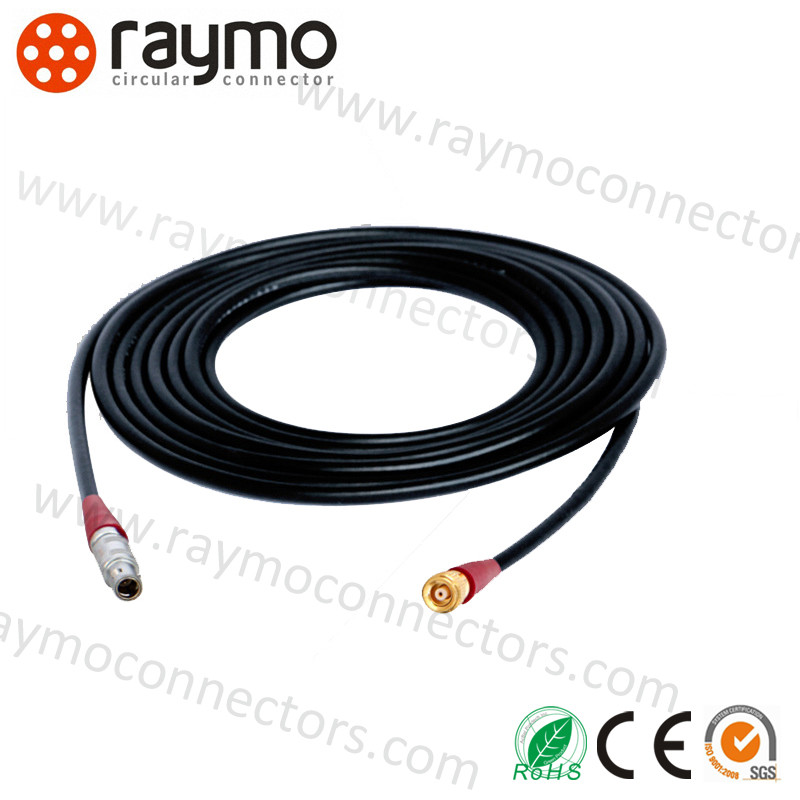

C5-S5 Ultrasonic Probes Cables Single 00s Circular Push Pull Connectors To Subvis

Parts Description

FFA.00.250 + Subvis male

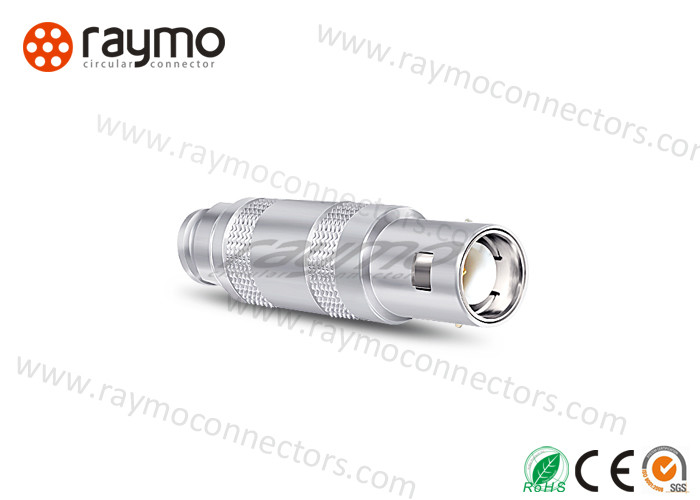

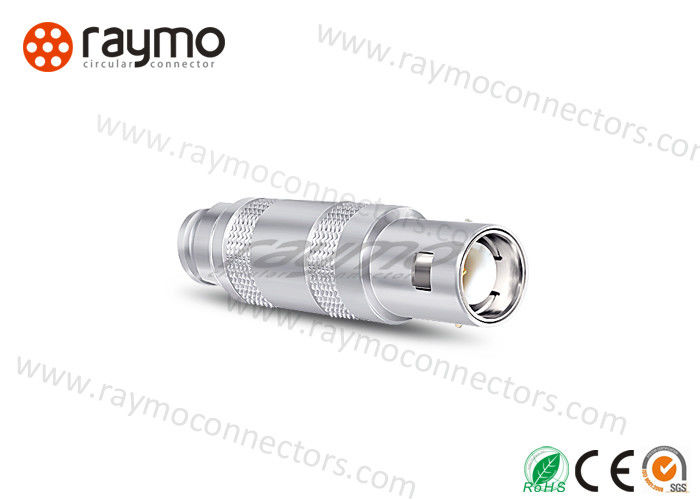

FFA coaxial circular push pull connector to Subvis

This cable is used for Ultrasonic probes, its assemblied with 2 pcs 00s coaxial connector ,

00S FFA to Subvis, cable length is 1M, can be customized

Main Features of ECG panle circular connector

1. Push pull locking metal connector, cable to cable connector, free socket, inline connector

2. can be 100% compatible with original connector

3. can plated with white or black chrome

4. 360 angle screening for full EMC shielding

5. ISO:9001-2015 CE RoHS2.0 SGS REACH

Technical Characteristics of Metal Circuar push pull connector

Temperature Range	- 40° C, +125° C	Resistance to vibrations	15 g [10 Hz - 2000 Hz]
Shell Material	Brass with chrome plated	Humidity	up to 95% at 60° C/140F
Shock Resistance	100 g [ 6 ms]	Salt spray corrosion test	>96hr
Climatical Category	50/175/21	Shielding (min)	> 75 dB [ at 10 MHz], > 40 dB [ at 1 GHz]
IP Rating	IP50	Endurance(shell)	5000 mating cycles

RAYMO Circular Connector :

SHENZHEN RAYMO ELECTRONICS TECHNOLOGY LIMITED has been specializing in prcing Waterproof

Connector Metal Fast Lock for many years, we providing high quality waterproof metal connector Prcts.

Quality is our priority. Raymo always attach great importance to quality controlling from the very beginning to

the very end. Our factory has gained ISO9001, If you are searching for waterproof connector metal fast lock,

please feel free to contact us.

RFQ:

Q1. Can I have a sample ?

Yes, we welcome sample order to test and check quality. Some samples are free, and some samples should be

paid in advance and the cost will be refund after further order.

Q2. What about the prction lead time?

We have stock, fast delivery below 5,000 pieces.

Q3. How do you ship the goods and how long does it take to arrive?

We often ship by DHL, UPS, FedEx,TNT,SF or EMS. It usually takes 3-5 days to arrive.

Q4. Is it OEM available?

Yes. We have rich experience and good ability to put your design and idea into real prct, normally it take

about 20 to 30 days for new prct from mold design to final prction.
