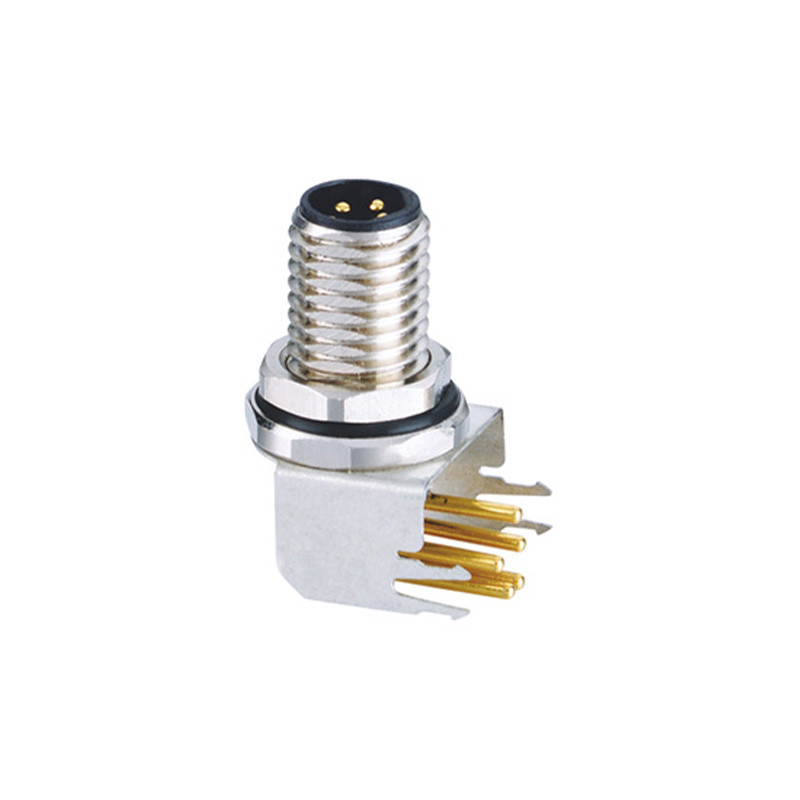

Shielded Miniature Circular Connectors M8 Right Angle For Sensors Actuators

Description for binder 768 series M8 3 4 5 6 8 poles sensor miniature circular connector

The M8 series provides a wide range of metric M8 connectors for small sensors and actuators. Available in a shielded form and rated to IP67, these connectors are ideally suited for inductrial control networks where small sensors are required. Connectors are either factory TPU over-molded or panel receptacle supplied with a solder-up for wire connecting or with PCB panel solder contacts. A field attachable/mountable connector is also available.

Specification for binder 768 series M8 3 4 5 6 8 poles sensor miniature circular connector

Electrical data & Mechanical data for binder 768 series M8 3 4 5 6 8 poles sensor miniature circular connector

Features for binder 768 series M8 3 4 5 6 8 poles sensor miniature circular connector

• M8 connector pin configurations: 3 pin, 4 pin, 5 pin, 6 pin
• Non-removable Contacts
• Meets IP67/IP68 water proof requirements
• -40°C to +85°C Temperature Range
• Available as loose piece or as pre-made M8 cables

Application for binder 768 series M8 3 4 5 6 8 poles sensor miniature circular connector

RAYMO has already established an integrated quality control system from R&D, supply chain, marketing, sales, after-sales service to meet customer deeper demand, and expect to achieve Raymo’s globalization strategy.

• Vacuum
• TV and motion picture
• Actuators
• Industry
• Communication systems
• Data acquisition
• Sensors

Our advantage for binder 768 series M8 3 4 5 6 8 poles sensor miniature circular connector

• Original manufacturer
• Excellent R&D team
• 10+ years experience
• OEM & ODM acceptable
• 100% quality tested
• 100% fast delivery
• 100% after-sales service

binder 768 series M8 3 4 5 6 8 poles sensor miniature circular connector
