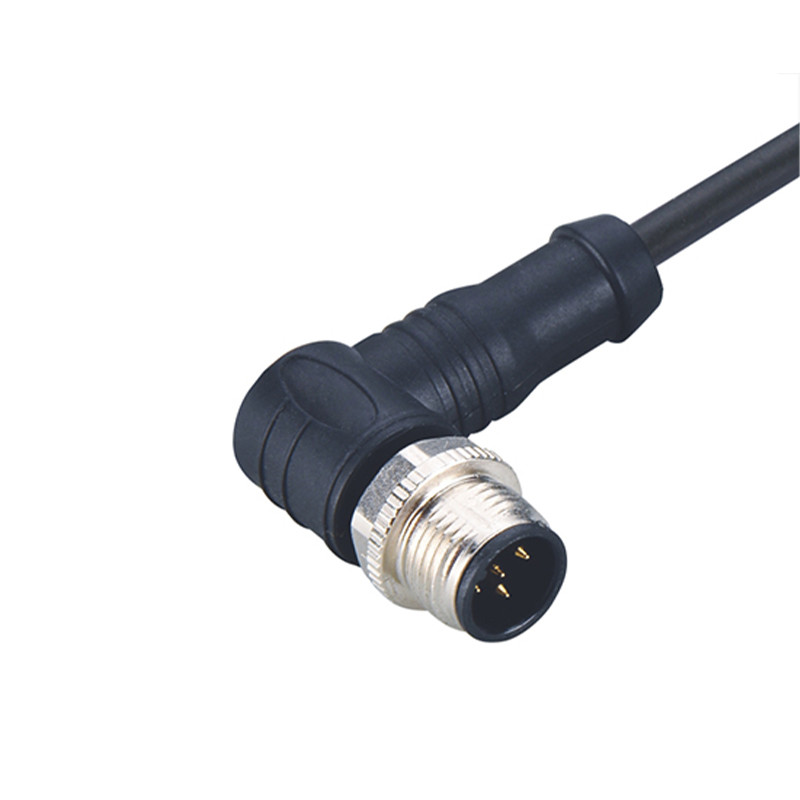

M12 Elbow 8 Pin Miniature Circular Connectors Waterproof Screw Thread Coupling

Description for m12 connector elbow 8 pin miniature circular waterproof screw thread coupling

The M8 series provides a wide range of metric M8 connectors for small sensors and actuators. Available in a shielded form and rated to IP67, these connectors are ideally suited for inductrial control networks where small sensors are required. Connectors are either factory TPU over-molded or panel receptacle supplied with a solder-up for wire connecting or with PCB panel solder contacts. A field attachable/mountable connector is also available.

Specification for m12 connector elbow 8 pin miniature circular waterproof screw thread coupling

Electrical data & Mechanical data for m12 connector elbow 8 pin miniature circular waterproof screw thread coupling

Features for m12 connector elbow 8 pin miniature circular waterproof screw thread coupling

• Design as per IEC 61076-2-104
• Size can be M5,M8,M12,M16
• Gold-plated ternimals
• Degree of protection IP67
• 3,4,5,6,8 poles are available
• Anti-vibration locking screw design
• TPU over molded ot PA+GF shell
• Perfect O-ring tightened sealing
• Cable length customized, PUR and PVC cable options

Application for m12 connector elbow 8 pin miniature circular waterproof screw thread coupling

• Studios and outside broadcasting
• Target acquisition
• Scientific research
• Vacuum
• Sensor & Industrial Automation
• LED lighting & LED display
• Measuring & Testing

Our advantage for m12 connector elbow 8 pin miniature circular waterproof screw thread coupling

• Original manufacturer
• Excellent R&D team
• 10+ years experience
• OEM & ODM acceptable

FAQ

-What is your terms of packing?
A: Generally, we pack our goods in PE bag and brown cartons.
OEM&ODM is available after getting your authorization letters.

-Can you prce according to the samples?
A: Yes, we can prce by your samples or technical drawings. We can build the molds and fixtures.

-Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.

m12 connector elbow 8 pin miniature circular waterproof screw thread coupling
