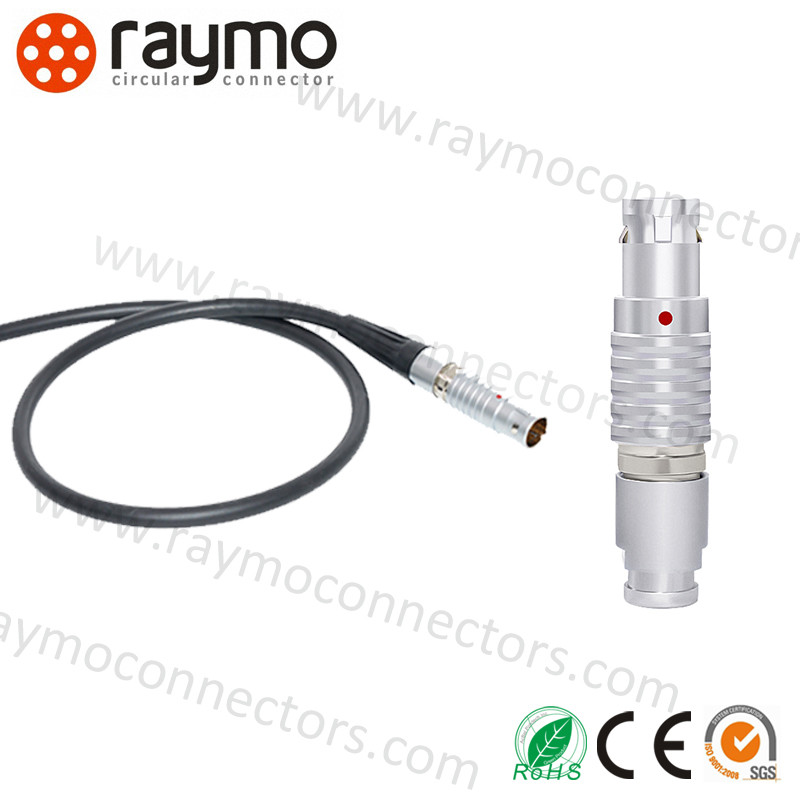

RAYMO Alternative Series 16 Contacts Circular Push Pull Connectors L S21LFC-P16MFG0-6200

RAYMO series L S21LFC-P16MFG0-6200 Circular Push Pull Connectors

Circular Push-Pull-Connectors have a very simple locking mechanism:

- As the plug is pushed into the receptacle, locking fingers on the plug snap into the receptacle creating a reliable connection between plug and receptacle.
-Pulling on the cable or the rear of plug causes the locking fingers to grab harder and a separation of plug and receptacle is almost impossible. Pulling on the outer plug housing causes the locking fingers to retract and the plug and receptacle separate easily.

Techinical characteristics for RM-FGG-1BC-316-JS62 Circular Push Pull Connector



Microsoft Word.docx

The Advantages of Circular Push-Pull-Connectors:
- Quick and easy mating and demating
- Quick and easy seperating
- With easy operating push-pull self-locking system
- High pin density contributing to equipment miniaturization
- Shell size from 00B to 3B
- Contacts from 2-30pins
- Alignment Key and Polarized Keying System to avoid cross-interface
- 360° EMC shielding

Important Applications for Circular Push-Pull Connectors:
It is widely used on all kinds of medical equipment's, specially for the signal transmission, Medical Equipment ,Audio / Video, Test and Measurement, Communications prct line. Some of the most common areas are:
-Medical Electronics
- Test and Laboratory
- Measurement Instrumentation
-Data and Telecom Systems
- Audio and Video Applications
- Military and Aerospace
- Industrial Controls
- Nuclear Technology

Our advantage
- Original manufacturer
- Excellent R&D team
- 10+ years experience
- OEM & ODM acceptable
- 100% quality tested
- 100% fast delivery
- 100% after-sales service

Drawing for series B FGG straight plug Circular Push Pull Connector
