J30j Series Rectangular Electrical Connectors with 9 Contacts D-SUB Micro-D Connectors and Durable

J30j Series Rectangular Electrical Connectors with 9 Contacts D-SUB Micro-D Connectors and Durable

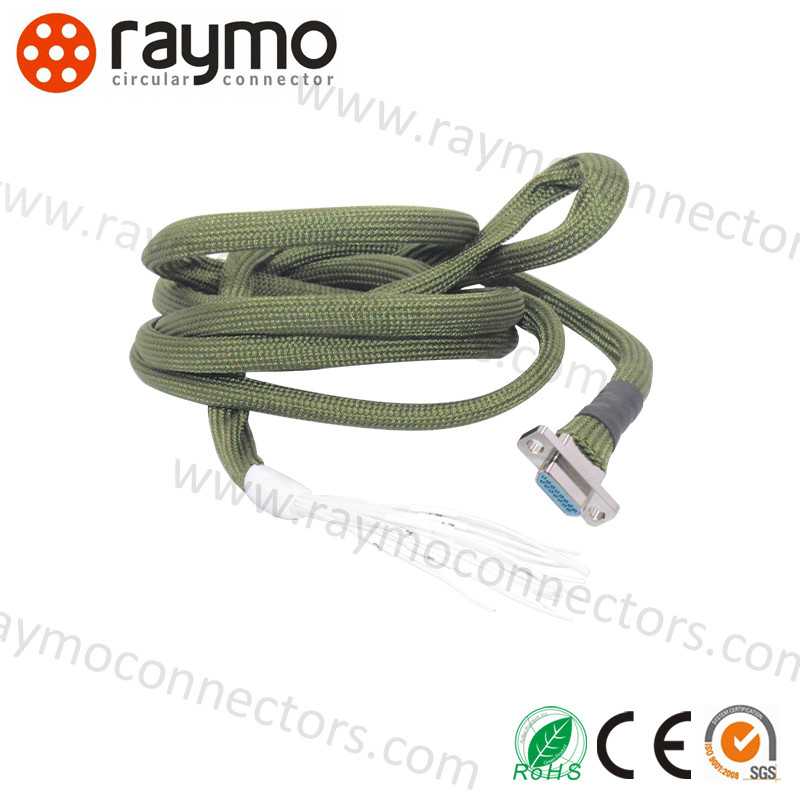

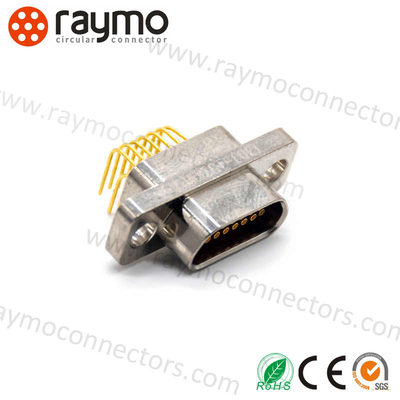

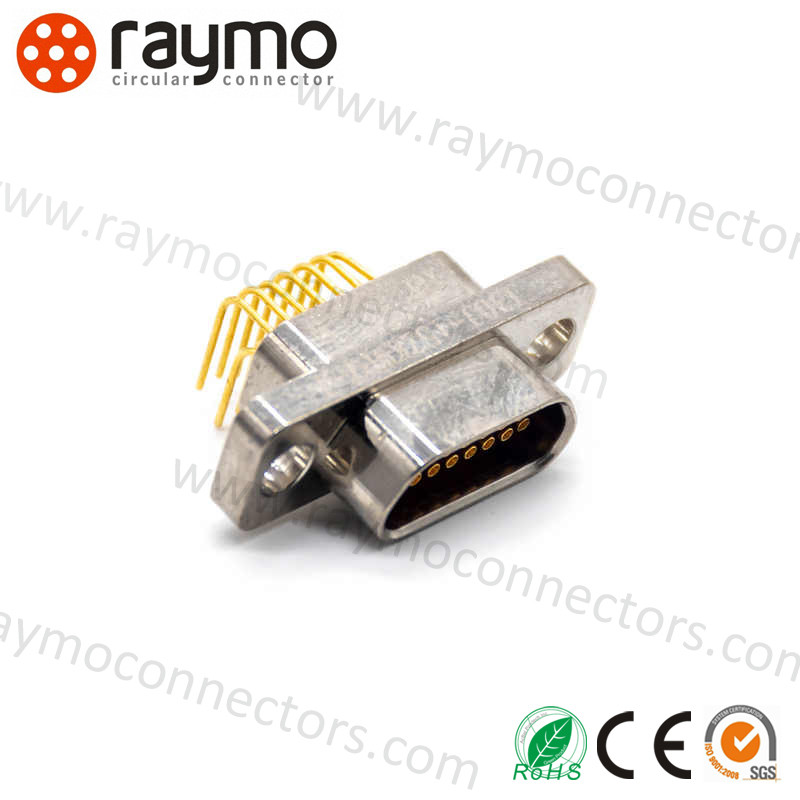

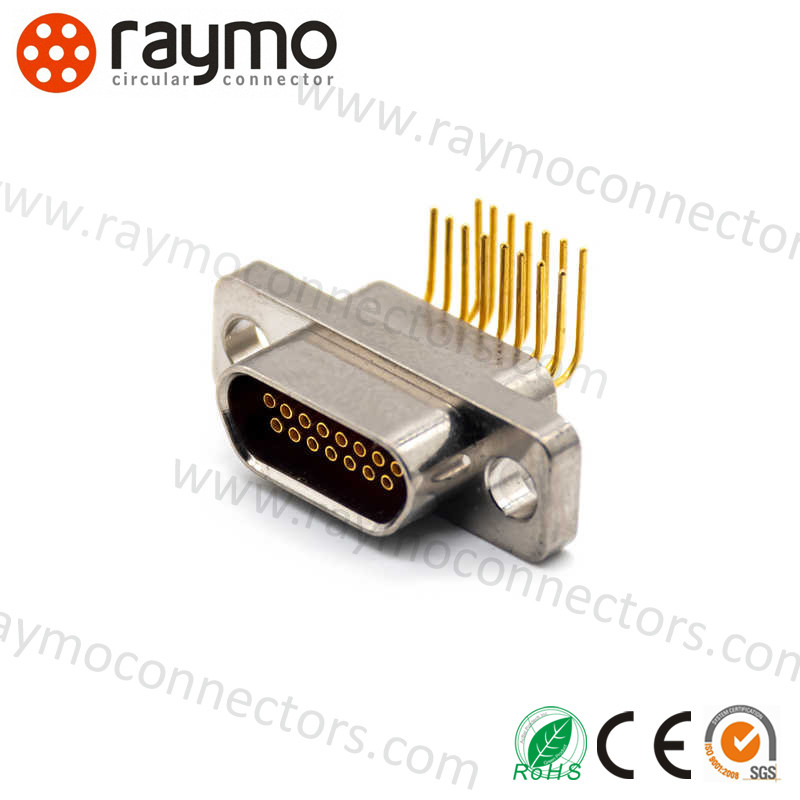

J30j Series Rectangular Electrical Connectors with 9 Contacts D-SUB Micro-D Connectors and Durable J30j Series Rectangular Electrical Connectors with 9 Contacts D-SUB Micro-D Connectors and Durable J30j Series Rectangular Electrical Connectors with 9 Contacts D-SUB Micro-D Connectors and Durable J30j Series Rectangular Electrical Connectors with 9 Contacts D-SUB Micro-D Connectors and Durable
اطلاعات پایه
محل منبع: چین
نام تجاری: RAYMO
گواهی: CE/ROHS/REACH/SGS
شماره مدل: J30J-15ZK
مقدار حداقل تعداد سفارش: 1 عدد
قیمت: 2.1
جزئیات بسته بندی: کیف و کارتن PE
زمان تحویل: 5-7 روز کاری
شرایط پرداخت: L/C ، D/A ، D/P ، T/T ، Western Union ، MoneyGram
قابلیت ارائه: 50000 قطعه در ماه
اکنون تماس بگیرید
نوع اتصال دهنده: اتصالات مستطیل شکل سری J30J نوع: اتصالات میکرو D D-Sub
مادی: آلومینیوم با روکش نیکل چرخه جفت گیری: 500 بار
تماس ها: 9،15،21.25.31.37.51.66.74.100.144 رتبه بندی IP: IP65
برجسته کردن:

Durable Rectangular Electrical Connectors,D-SUB Micro-D Rectangular Electrical Connectors,9 Contacts Rectangular Electrical Connectors

,

D-SUB Micro-D Rectangular Electrical Connectors

,

9 Contacts Rectangular Electrical Connectors

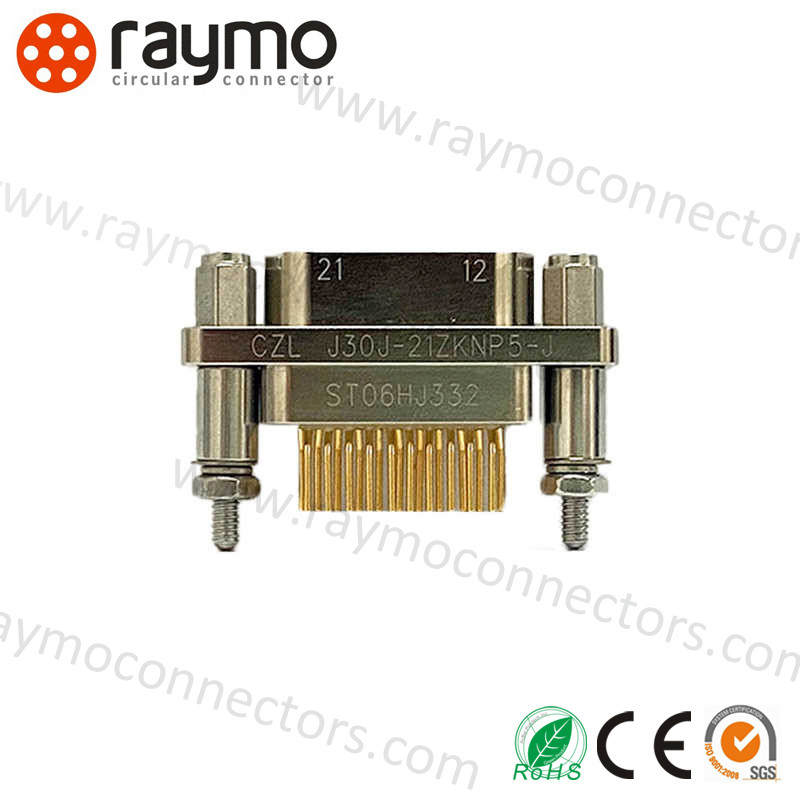

J30J Series Rectangular Connector

INTERMATEABLE WITH MDM SERIES /MIL-DTL-83513 /Glenair Mwdm /Amphenol Series 100 CONNECTOR
J30J Series, (formerly MIL-C-83513) describes polarized shell, micro-miniature, rectangular electrical connectors with solder or non-removable crimp contacts. Featuring of high current capability, low contact resistance, high dielectric strength and excellent resistance to shock and vibration, while offering a high pin density, small size and lightweight body, the MIL DTL 83513 connector meet the severe requirements of different applications and harsh environments, which is mechanically robust and durable. The connector is often referred to as a Micro-D connector system, which can be applied to a multitude of systems including aerospace avionics, radars, advanced soldier technology systems, Global Positioning Systems, medical devices and down-hole drilling tools, etc., in which weight, miniaturization or signal transmission integrity are paramount.
J30J series Rectangular Connector characteristics and features

1 .Corresponding to American MDM series products；

2.NO. of contact: 9,15,21,25,31,37,51,66,69,74,100,144 core；
3.twist pin, high contact density；Sectional area of wire core 0.035mm2～0.2mm2, suggest to select 0.1mm2～0.15mm2；Lock parts of this series product are assembled and supplied together with products according to order requirement. Please indicate in the contract
4..Product performance meet demand of GJB2446 ( equivalent to MIL—C-83513)executive enterprise standard:Q/FY QJ0001-2010



Environmental temperature
-55～+125℃
Contact resistance
≤10mΩ
Relative humidity
+40℃ up to 95%
Insulation resistant
≥5000MΩ
vibration
10～2000Hz 196m/s2
Dielectric withstand voltage
800V

shock
735m/s²
Mechanical Life
500 times
total acceleration RMS
23.1G
Instant break time
≤1μs
current rating
3A





J30J series Rectangular Connecto parts numbering



　 J30J X -15 ZK X P - G AD
Main code: J30J 　 　 　 　 　 　 　
J30J series
Variations: 　 　 　 　 　 　 　 　
No designator-basic type,
C-The outer material is tin phosphor copper and plating nickel,
D-Mounting hole changed for M2-6H,
M-Sealed with glue
Number of contacts: 　 　 15 　 　 　 　 　
9, 15, 21, 25, 31, 37, 51, 74, 100
Connector and contact type: 　 　 　 ZK 　 　 　 　
TJ- plug with pins,
ZK- Receptacle with socket,
TJ/ZK is fixation combination
Type of contact terminal: 　 　 　 　 　 　 　 　
Null-Crimp,
S-Solder,
N-Straight inserting PCB,
W-Right angle inserting PCB
Type of locking subassemblies: 　 　 　 　 　 P 　 　
Check More details in J30J Locking Subassemblies
Finishing: 　 　 　 　 　 　 - G 　
Null- Shell plated with nickel,
G- Shell plated with cadmium
Improved type: 　 　 　 　 　 　 　 A
A-Shell with shielding braid cable clipper,
C-Suitable for contact and wire is right angle,
D-There is spinning-resistance groove in the interface terminal of the receptacle shell flange,
AD-The combination of variation A and D,
J-The grid of PCB is 1.27×2.54 (row*line),
Q-The shell flange is widened.





J30J Common Series
J30J Crimp series J30J Solder S series J30J Straight Inserting PCB N series J30J Straight Inserting PCB N-J series J30J 90° Inserting PCB W series J30J 90° Inserting PCB W-J series
　 　 　 　 　 　
with crimp contacts with solder contacts with the grid of 2.54X2.54 with the grid of 1.27X2.54 (row x line) with the grid of 2.54X2. 54 with the grid of 1.27X2. 54 (row X line)

 J30j Series Rectangular Electrical Connectors with 9 Contacts D-SUB Micro-D Connectors and Durable 0J30j Series Rectangular Electrical Connectors with 9 Contacts D-SUB Micro-D Connectors and Durable 1J30j Series Rectangular Electrical Connectors with 9 Contacts D-SUB Micro-D Connectors and Durable 2



J30J series Rectangular Connecto Company
SHENZHEN RAYMO ELECTRONICS TECHNOLOGY LIMITED as a professional in design and manufacture all kinds of connectors and special cables, have accumulated rich experience in development and production for kinds of cables and its related connector adapter.With RED/Teradek Bond/ARRI Camera Cable, Canon / Sony Camera Power Cable, SDI Cable, USB Cable, Video Cable, CCD Cable... We supply different OEM/ODM services serve as different application and requirement.
Our products are widely used in kinds of harsh environment and applications, like industrial control devices, medical equipment, measuring and inspecting equipment, audio & visual equipment and mil, etc. Furthermore, it has excellent compatibility with many leading supplier.
We always adhere to the spirit of innovation, continue to introduce new products series include M5,M8,M9,M12,M16,M23 and other data connectors.With IP68, ISO9001,Rohs,CE, REACH certificate approved.
J30j Series Rectangular Electrical Connectors with 9 Contacts D-SUB Micro-D Connectors and Durable 3

برچسب:

وصل کننده های پلگ نظامی,کانکتورهای کابلی نظامی,رابط های سیم

Durable Rectangular Electrical Connectors,D-SUB Micro-D Rectangular Electrical Connectors,9 Contacts Rectangular Electrical Connectors

mil spec wire connectors
