Name: J30J Series Metal Connector with 1.27mm Contact Spacing and Gold Plating
Brand: Shenzhen Raymo Electronics Technology Limited
SKU: RM-J30J
Price: 10.00 USD
Availability: InStock

J30J Series Metal Connector with 1.27mm Contact Spacing and Gold Plating

اطلاعات پایه

نام تجاری:	Raymo
گواهی:	CE/RoHs/REACH/ISO9001:2015
Model Number:	RM-J30J
مدرک:	J30J Miniature Rectangular ...es.pdf

Minimum Order Quantity:	1 Piece
قیمت:	5-15 USD
Packaging Details:	CTN
Delivery Time:	3-4 Weeks
شرایط پرداخت:	T/T ، D/A ، D/P ، Western Union ، MoneyGram
Supply Ability:	5000PCS Per Month

اکنون تماس بگیرید

مادی:

فلزی

نوع محصول:

اتصال

رتبه فعلی:

تماس:

9 ، 15 ، 21 ، 25 ، 31 ، 37 ، 51 ، 66 ، 74 ، 100

فاصله شبکه:

2.54 × 2.54

هادی مرکزی:

آلیاژ مس ، آبکاری طلا

مقاومت عایق:

5000 MΩ

پایان تماس:

پیچیدن

برجسته کردن:

J30J series metal connector with gold plating,1.27mm contact spacing J30J connector,J30J series gold plated metal connector

1.27mm contact spacing J30J connector

J30J series gold plated metal connector

1.27mm Contact Spacing J30J Series Connector for -55～125°C Temperature Range and Customized Wire Length

Product Attributes

Attribute	Value
Material	Metal
Product Type	Connector
Current Rating	3A
Contact	9, 15, 21, 25, 31, 37, 51, 66, 74, 100
Grid Distance	2.54×2.54
Center Conductor	Copper Alloy, Gold Plating
Insulation Resistance	≥ 5000 MΩ
Contact Termination	Crimp

Product Description

The J30J series connector is a high-quality product in the MWDM Glenair Micro-D family, offering exceptional performance and reliability. This connector features a grid distance of 2.54×2.54, making it compatible with various applications that require precise connections.

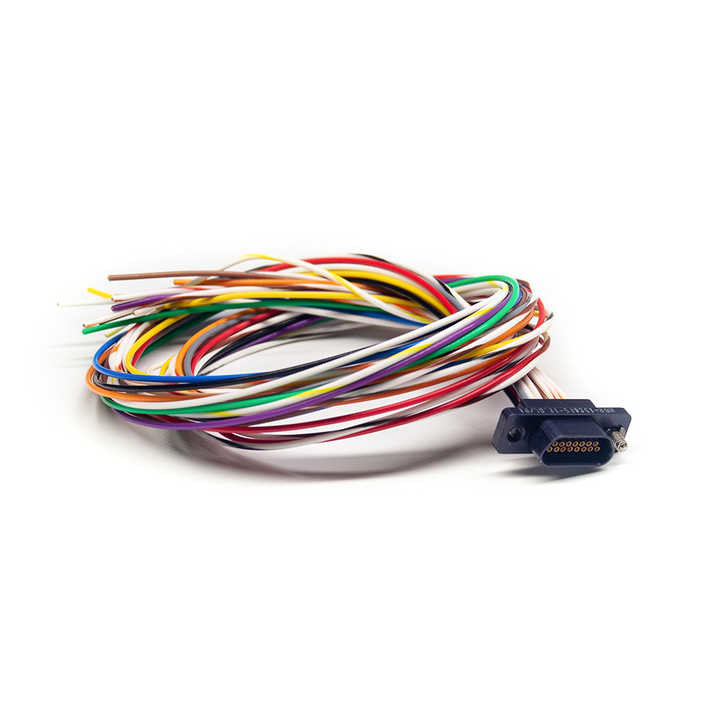

One of the key advantages of the J30J series connector is its customized wire length, allowing for flexibility in installation and usage. Whether you need a specific wire length for your project or require custom configurations, this connector can meet your requirements effectively.

Constructed from high-quality metal material, the J30J series connector offers durability and longevity in various operating conditions. The metal construction provides excellent protection against environmental factors, ensuring stable performance over time.

Key Features

Insulation Resistance: ≥ 5000 MΩ
Plating: Gold Plating
Grid Distance: 2.54×2.54
Temperature Range: -55～+125°C
Contact Options: 9, 15, 21, 25, 31, 37, 51, 66, 74, 100

Technical Parameters

Parameter	Value
Contact Gender	Male Plug/Female Receptacle
DWV	800V
Product Type	Connector
Center Conductor	Copper Alloy, Gold Plating
Current Rating	3A
Temperature Range	-55～+125°C
