J30J Series Connector 21 Pins 250V with 0.1-0.15mm2 White Wire

J30J Series Connector 21 Pins 250V with 0.1-0.15mm2 White Wire
J30J Series Connector 21 Pins 250V with 0.1-0.15mm2 White Wire
J30J Series Connector 21 Pins 250V with 0.1-0.15mm2 White Wire J30J Series Connector 21 Pins 250V with 0.1-0.15mm2 White Wire
اطلاعات پایه
نام تجاری: Raymo
گواهی: CE/RoHs/REACH/ISO9001:2015
شماره مدل: MDM-21P
مدرک: J30J Miniature Rectangular ...es.pdf
Minimum Order Quantity: 1 Piece
قیمت: 5-15 USD
Packaging Details: CTN
Delivery Time: 3-4 Weeks
شرایط پرداخت: T/T ، D/A ، D/P ، Western Union ، MoneyGram
Supply Ability: 5000PCS Per Month
اکنون تماس بگیرید
دامنه دما: -55+125 ℃ کابل جفت گیری: AFR-250 ، سیم سفید 0.1 ~ 0.15mm2
نرخ نشت: ≤1.01x10^-3 Pa.cm^3/s پین تماس: 21 پین
پین های موجود: 9 ، 15 ، 21 ، 25 ، 31 ، 37 ، 51 ، 66 ، 74 ، 100 طول سیم: 50 سانتي متر، 500 ميلي متر
طول کابل: همانطور که لازم است رتبه ولتاژ: 250 ولت
برجسته کردن:

J30J series connector 21 pins,J30J connector with white wire,250V J30J series connector

,

J30J connector with white wire

,

250V J30J series connector

MDM-21PS MDM Series Connector
High-performance connector with leak rate ≤1.01×10-3 Pa·cm3/s and mating cable (AFR-250, White Wire 0.1-0.15mm2)
Product Specifications
Attribute Value
Temperature Range -55～+125 ℃
Mating Cable AFR-250, White Wire 0.1~0.15mm2
Leak Rate ≤1.01×10-3 Pa·cm3/s
Contact Pin 21 Pins

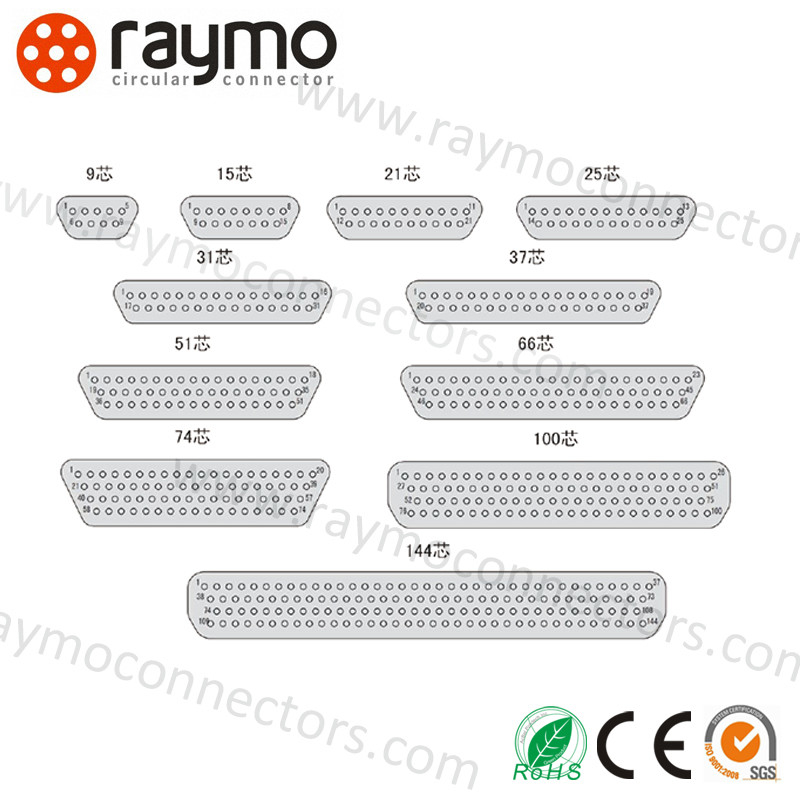

Available Pins 9, 15, 21, 25, 31, 37, 51, 66, 74, 100
Wire Length 50cm, 500mm
Cable Length Customizable
Voltage Rating 250V
Product Overview
The MDM Series connector is a versatile and reliable solution designed for applications requiring compact, efficient connections with superior leak protection. Compliant with MIL-C-83513 standards, this connector ensures high-quality performance in demanding environments.
Key Features
  • Multiple pin configurations available (9-100 pins)
  • Excellent leak rate performance (≤1.01×10-3 Pa·cm3/s)
  • Wide operating temperature range (-55～+125 ℃)
  • Customizable cable lengths available
  • Durable mating cycle of 500 times
  • Copper alloy contacts with gold plating
  • Compatible with ITT Cannon MDM Series connectors
Technical Parameters
Withstanding Voltage 500VAC
Center Conductor Copper Alloy, Gold Plating
Grid Distance 2.54×2.54mm
Certifications CE, RoHS, REACH, ISO9001:2015
Applications
Ideal for military, aerospace, and industrial applications where reliable micro-miniature connections are required. Suitable for electronic equipment operating in extreme environments.
Support & Services
Comprehensive technical support available including installation guidance, troubleshooting, and product compatibility information. Our expert team ensures optimal product performance and customer satisfaction.
