خانه محصولاتکانکتور دایره ای ضد آبLow Voltage Circular Waterproof Connector , Waterproof Automotive Connectors

Low Voltage Circular Waterproof Connector , Waterproof Automotive Connectors

Low Voltage Circular Waterproof Connector , Waterproof Automotive Connectors
Low Voltage Circular Waterproof Connector , Waterproof Automotive Connectors
Low Voltage Circular Waterproof Connector , Waterproof Automotive Connectors Low Voltage Circular Waterproof Connector , Waterproof Automotive Connectors Low Voltage Circular Waterproof Connector , Waterproof Automotive Connectors Low Voltage Circular Waterproof Connector , Waterproof Automotive Connectors
اطلاعات پایه
محل منبع: شنژن ، چین
نام تجاری: RAYMO
گواهی: CE/ROHS/SGS/ISO:9001-2015
Model Number: RM-EEG.2KC.319.KS
مقدار حداقل تعداد سفارش: 1 قطعه/قطعه
قیمت: negotiable
Packaging Details: Plastic Bag & Carton
زمان تحویل: 5-7 روز کاری
Payment Terms: T/T, Western Union, D/A, D/P,L/C, MoneyGram
قابلیت ارائه: 5000تکه/هفته
اکنون تماس بگیرید
Prct Name: IP68 Waterproof push pull connector Model: EGG panle mount socket
Contact no.: 2-32 pins Shell size: 0K,1K,2K,3K
Shell Color: Natural or Black shell جنس: مرد، زن
Insulator: PPS, PEEK Contact type: Solder/PCB/90° PCB contacts
Cable assembled or not: Yes رتبه بندی IP: IP68
برجسته کردن:

waterproof wire connectors,waterproof cable connector

,

waterproof cable connector

Prct Description

RM-K Series  0K 1K 2K 3K series PHG cable mount sokcet

Part No.:

EEG.2K.319.CLL/ RM-EEG-2KC-319KS

Prct Description:

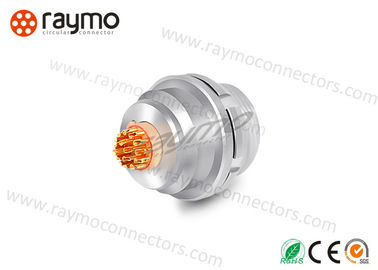

2K size connector, EEG panel mount socket, 19pin female contact, natural chrome plated shell in brass



K series Push pull locking metal connector, cable to cable connector, free socket, inline connector

Main Futures
1 Waterproof Secure high performance push-pull Self-locking system
2 100% compatible with original Lemo K series connector
3 can plated with white or black chrome
4 2-32pin available
5 Available solder and PCB or right angle PCB contact.
6 360° EMC shield
7 Certificate:ISO:9001-2015, CE ,RoHS2.0, SGS, Reach





Technical Characteristics
Temperature Range - 65° C, +200° C Resistance to vibrations 15 g [10 Hz - 2000 Hz]
Shell Material Brass with chrome plated Humidity up to 95% at 60° C/140F
Shock Resistance 100 g [ 6 ms] Salt spray corrosion test >144hr
Climatical Category 55/175/21 Shielding (min) > 95dB [ at 10 MHz],     > 80 dB [ at 1 GHz]
IP Rating IP 68 Endurance(shell) ≥5000 mating cycles





Low Voltage Circular Waterproof Connector , Waterproof Automotive Connectors 0

Shell size Contacts no. ( Both with Solder & PCB type )
0K 2 3 4 5 6 7 9 　 　 　 　 　
1K 2 3 4 5 6 7 8 10 12 14 16 　
2K 2 3 4 5 6 7 8 10 12 14 16 19
3K 3 4 6 8 9 10 12 14 14 16 18 21
26 30 32 　 　 　 　 　 　 　 　 　



Our Company



RAYMO's high quality connectors are found in a variety of challenging applications and environments including:
Automotive, Audio-video, Aviation, Communications, Industrial Control, Information Systems, and Machines, Medical, Military, Test and Measurement, Data Acquisition, Data Transfer Equipment. Mle Power, Sensor,Sensor Systems Instrumentation, Analysis Application

Our Exhibition

2020.11 Electronica Munich, Germany
2019 9.24-9.26 Testing Expo, Shanghai
2018 11.12-11.15 Electronica Munich, Germany
2017 9.11-9.16 NAB Show,Netherlands
2016 4.11-4.15 HK Fair
2015 10.2-10.7 ICEEB, Brasil
2014 10.11-10.15 HK Fair
2014 4.11-4.15 HK Fair

Why Choose US?

Low Voltage Circular Waterproof Connector , Waterproof Automotive Connectors 1

If you couldn't find exact items you want,PLS kindly email us exact models you need, best price & each model specification details will be provided to you soon. Solve the original brand's high cost and long lead time!
