خانه محصولاتکانکتور دایره ای ضد آبSocket Fixed Circular Push Pull Connector

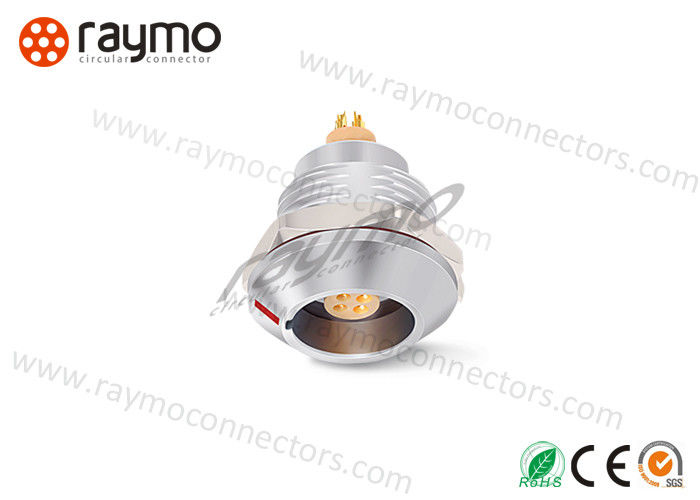

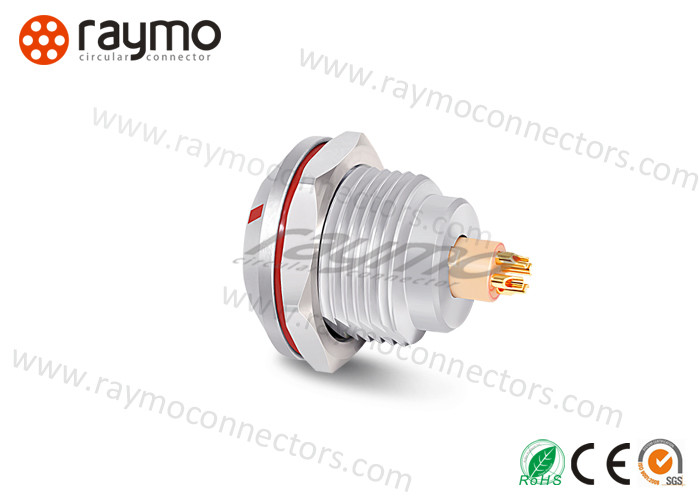

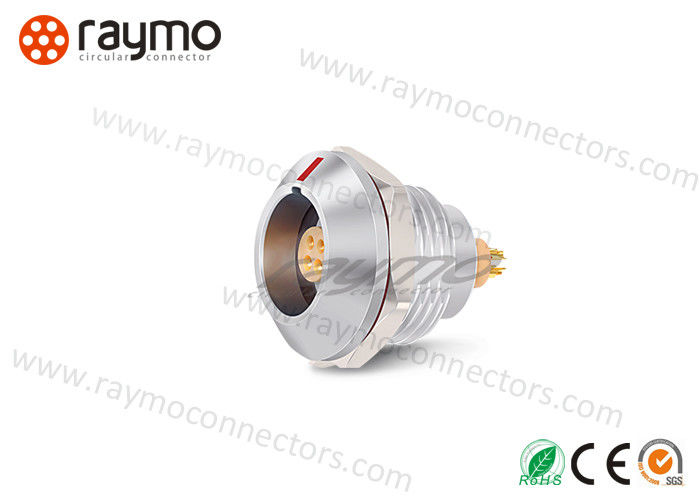

Socket Fixed Circular Push Pull Connector

Socket Fixed Circular Push Pull Connector
Socket Fixed Circular Push Pull Connector Socket Fixed Circular Push Pull Connector Socket Fixed Circular Push Pull Connector Socket Fixed Circular Push Pull Connector Socket Fixed Circular Push Pull Connector
اطلاعات پایه
محل منبع: شنژن ، چین
نام تجاری: RAYMO
گواهی: ISO9001:2015 CE ROHS2.0 REACH SGS
Model Number: EGG.0K.309.CLL
مقدار حداقل تعداد سفارش: 1 کامپیوتر
قیمت: negotiable
جزئیات بسته بندی: 150pcs/ctn
زمان تحویل: 2-3 روز کاری
شرایط پرداخت: L/C ، D/A ، D/P ، T/T ، Western Union ، MoneyGram
قابلیت ارائه: 50000 عدد در هفته
اکنون تماس بگیرید
Prct name: Fixed socket Model: EGG.0K.309.CLL
Available shell: 0K ,1K, 2K, 3K Contact no: 2,3,4,5,6,.7,8,9,10,12,14,16,21,26,30,32
مواد تماس تلفنی: برنج با روکش طلا مواد مسکن: برنج با روکش کروم
Insulator Material: PPS, PEEK کاربرد: قدرت الکتریکی
برجسته کردن:

waterproof wire connectors,waterproof electrical connectors

,

waterproof electrical connectors

EEG.0K LEMO Equivalent connector, Circular push pull panel mount connector

Circular Push Pull Connector Socket Fixed female socket, nut fixing from back panel EGG.0K.309.CLL





RM-EGG-0KC Can be 100% compatible with EGG.0K LEMO CONNECTOR but much cheaper with faster delivery.

Raymo electronics technology ltd is a professional push pull connector manufacturer intergrating connector researching, designing and development,prction and sales !

Raymo offer you various range of push pull circular connectors and cable assembly.You will find raymo connectors in widely range of military denfence, medical, Test and measurement,High Speed Camera,Submarine industry.



Part no details.



Raymo Part No. Original LEMO Part No. Item Description
RM-EGG-0KC-309-KS EGG.0K.309.CLL 0K series panel mount  socket , female contact, multipole 9pin , natural chrome plated, key G, for solder type contact



Available shell size and contacts



Shell size Contacts no. ( Both with Solder & PCB type )
0K 2 3 4 5 6 7 9 　 　 　 　 　 　 　 　
1K 2 3 4 5 6 7 8 10 14 16 　 　 　 　 　
2K 2 3 4 5 6 7 8 10 12 14 16 19 　 　 　
3K 3 4 6 8/(6+2) 9(8+1) 10 12 14(13+1) 14 16 18 21 26 30 32
4K 7 10 24 　 　 　 　 　 　 　 　 　 　 　 　





Specifcation



Technical Characteristics
Temperature Range - 65° C, +200° C Resistance to vibrations 15 g [10 Hz - 2000 Hz]
Shell Material Brass with chrome plated Humidity up to 95% at 60° C/140F
Shock Resistance 100 g [ 6 ms] Salt spray corrosion test >96hr
Climatical Category 50/175/21 Shielding (min) > 75 dB [ at 10 MHz], > 40 dB [ at 1 GHz]
IP Rating IP 68 Endurance(shell) 5000 mating cycles



Shell dimensions

Socket Fixed Circular Push Pull Connector 0



RAYMO Connectors advantages
  1. Cheap price, fast delivery,save your cost.
  2. Free samples.
  3. Easy mating, can be blind-mated guiding mechanism ensures precise alignment.
  4. Increased safety and user friendliness mechanical and color coding prevent misconnection.
  5. Convenient grip even with gloves circular connectors with ribbed housing profile.
  6. Increased equipment life span guiding mechanism optimally protects the contacts.
  7. Robust and shock resistant designs ideal for equipment used in the field.
  8. Long prct durability 5,000 mating cycles guaranteed.
FAQ
  1. Can I order a small list ?, yes, you can, 1 piece is ok.
  2. What quote do you offer? EXW, FOB, CIF and others ways according the your needs.
  3. How transport? Sea Freight, Air Freight and others Express Delivery ways for you.
  4. What is the quality of your prcts guarantee? We have passed ISO9001:2015 Quality Management System Certification, CQM Quality Management System Certification and IQNet Quality Management System Certification, If the quality doesn't accord the standard, you can exchange the goods for free.
  5. Do you have after-sales service? Certainly,you can contact us at any time.

Get a price, lead time, datasheet , NOW !
